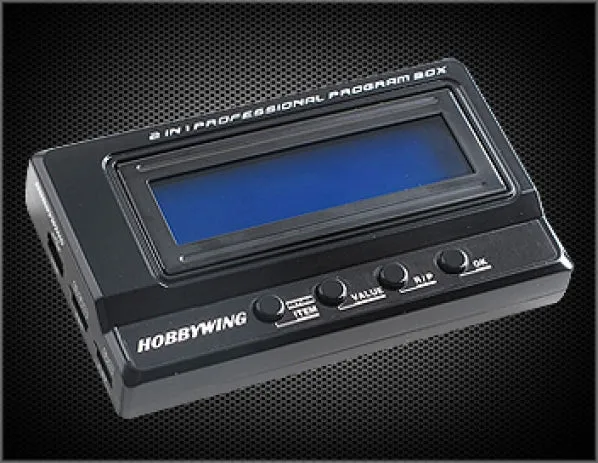

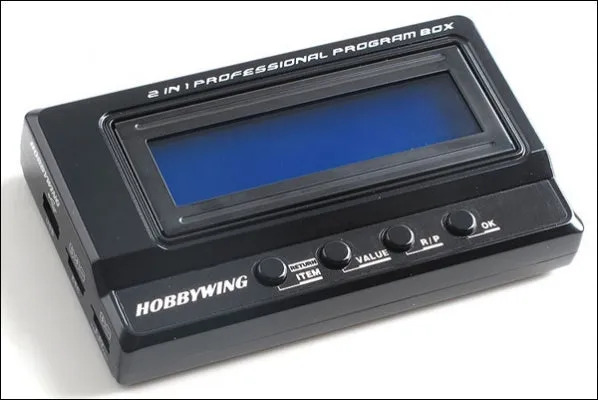

The "Professional LCD Program Box" is applicable for programming the following ESC:
PLATINUM series helicopter/aircraft ESC
XERUN and EZRUN series Car ESC (Version 2.0 and 2.1)
XERUN-120A V3 ESC
(Note: To work with XERUN V3 ESC, the LCD Program Box MUST be updated by a new version USB Link Software. Usually V3.2_121204 or later version is recommended)

1  Working Modes
1.1  Working as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
1.2  Working as an USB adapter to link the ESC with a PC, user can update the firmware of the ESC or precisely set the ESC by HOBBYWING USB LINK SOFTWARE on PC.2  Specifications
2.1 Size:  91mm (L) * 54mm (W) * 18mm (H)
2.2 Weight:  65g
2.3 Input Voltage:  4.8-6V
       (If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program box)
2.4 Displayer: 16*2 characters LCD.

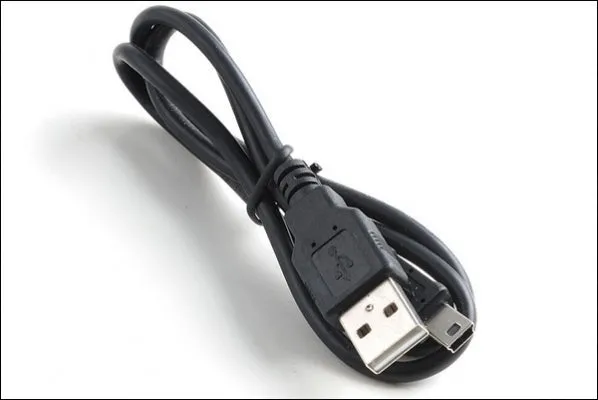

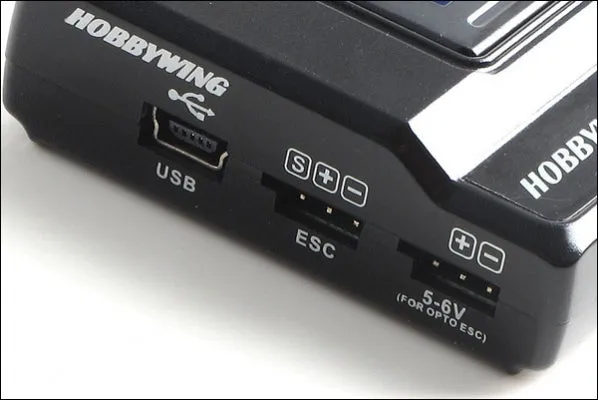

2.5 Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug).

A)  The programmable items for the XERUN and EZRUN series car ESC:
1    Running Mode
2    Drag Brake Force
3    Low Voltage Cut-Off Threshold
4    Start Mode
5    Maximum Brake Force
6    Maximum Reverse Force
7    Initial Brake Force
8    Throttle Neutral Range
9    Timing
10  Over-Heat Protection
11  Motor Rotation
12  Lipo Cells Amount
*Note: Some speed controllers have less programmable items, but some have more. Please read the user manual of your speed controller to get detail information.

B)  The programmable items for the PLATINUM series airplane ESC:
1    Brake
2    Battery Type
3    Low Voltage Protection Mode (Cutoff Mode)
4    Low Voltage Protection Threshold (Cutoff Threshold)
5    Start Mode
6    Timing
7    Governor Mode
8    Reserved Item #1
9    PWM Frequency
10  Built-In BEC Output
11  Reserved Item #2
12  Lipo Cells Amount

Part No. 86020090
