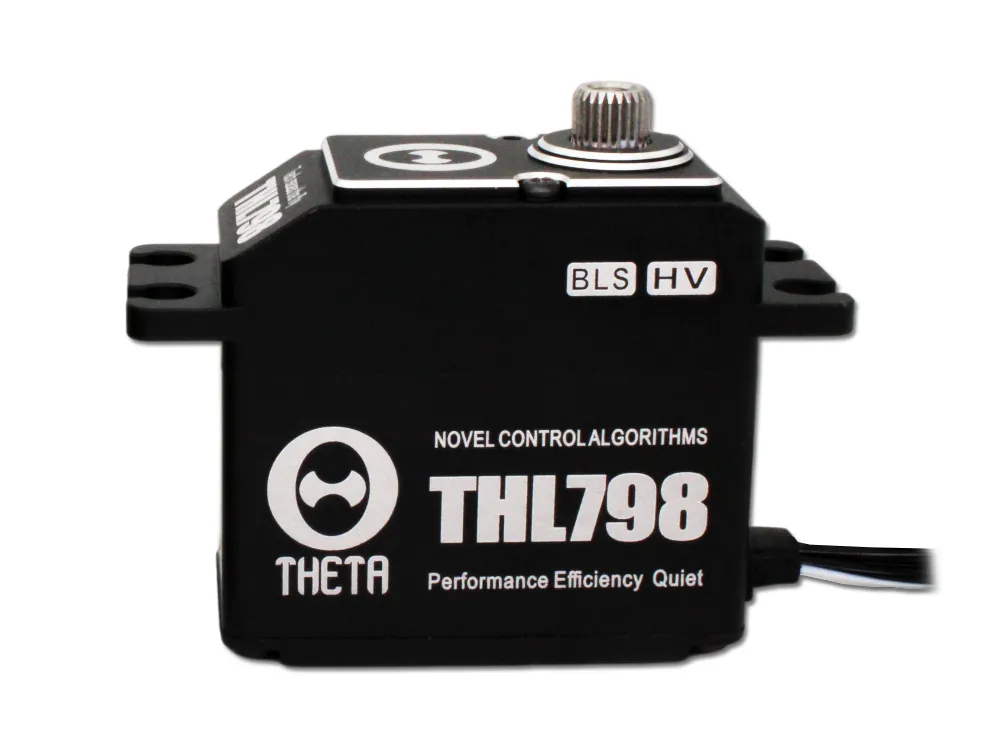

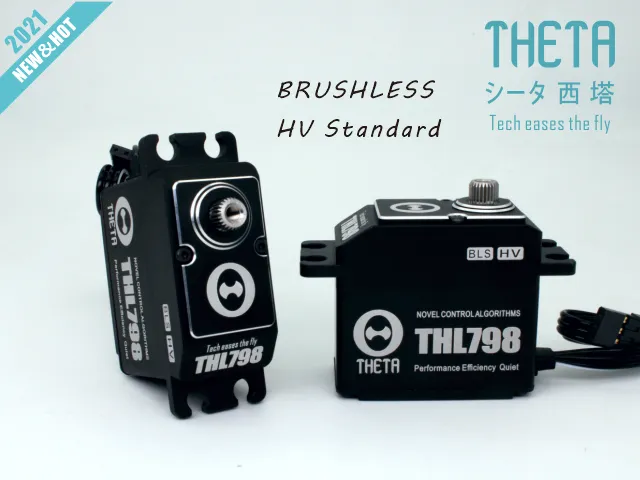

Theta THL798 70cc Servo TS-RTHL798
70cc Servo. High voltage, High-Torque, standard size brushless servo.

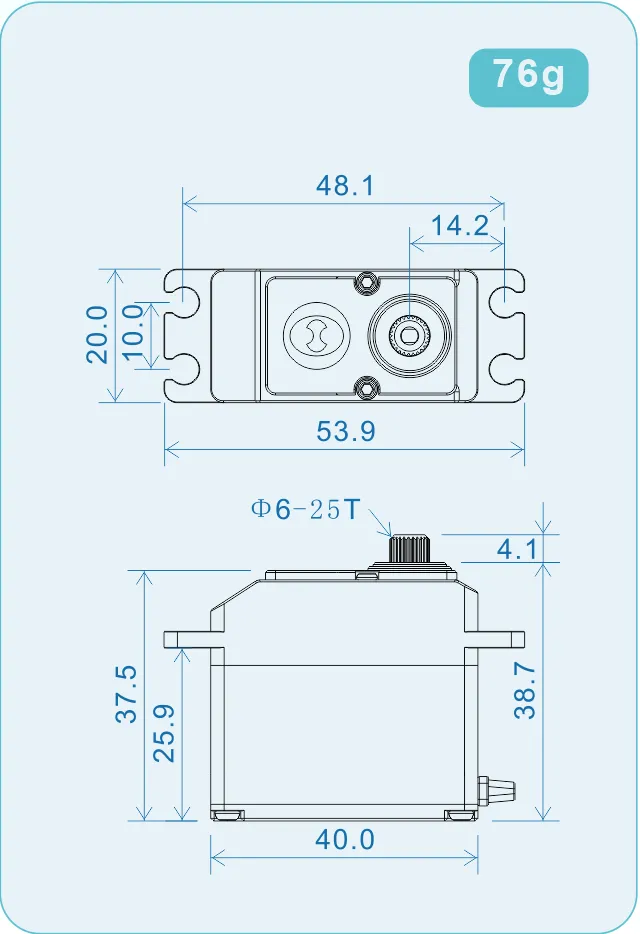

Programmable brushless HV servo in the 40 mm standard size.
The application range of the servo is versatile from helicopter tail rotor servo from the 550 size up to the 800 size, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC Cars.
3D Aerobatic Airplanes and Turbojet Aircraft
| Voltage (V) | Current (A) | Speed (s/60°) | Torque (kg*cm) |
5.0 | 6.0 | 0.12 | 28 |
6.0 | 7.0 | 0.11 | 32 |
7.4 | 7.5 | 0.10 | 36 |
| 8.4 | 8.0 | 0.09 | 40 |
