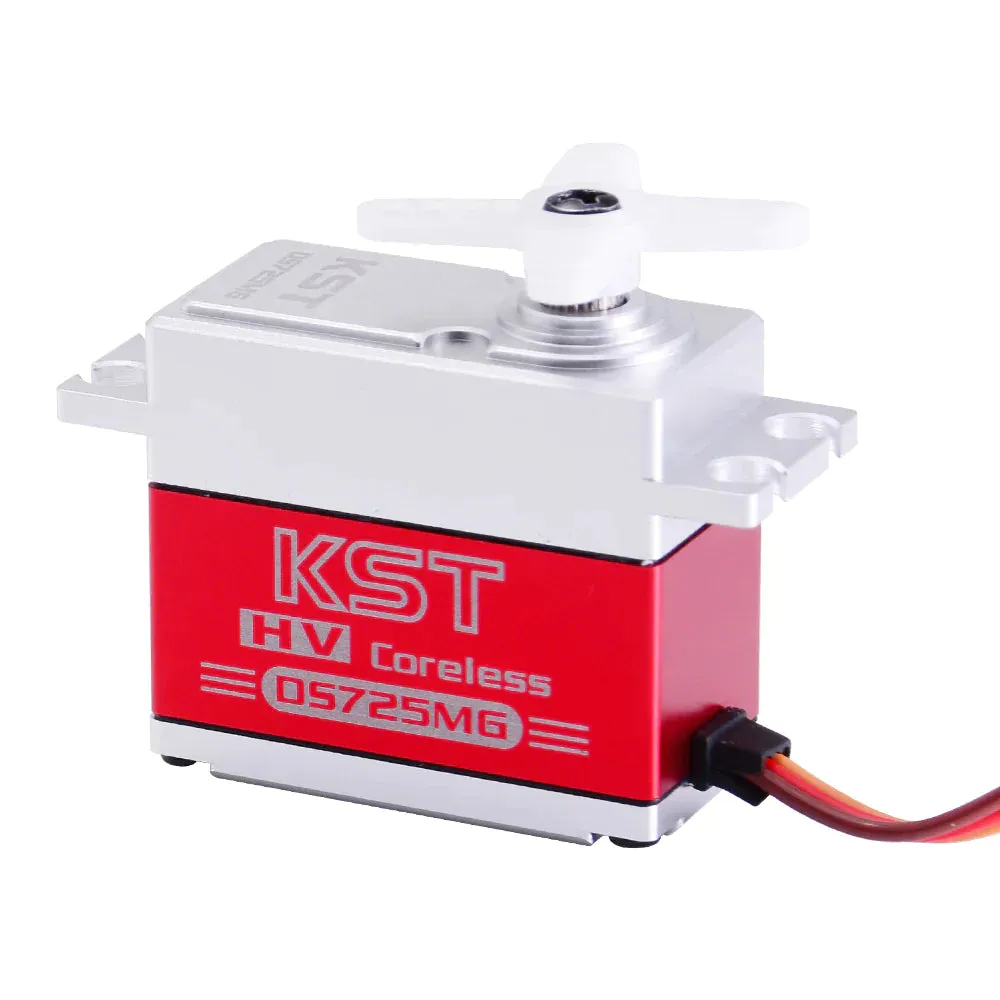

The KST DS725MG Digital Servo is a top-quality choice for 550 helicopter airplanes, featuring a large stall torque of 18.0kg and a small size and light weight. The all-metal case is crafted using CNC technology, and two ball bearings are included for added precision. The servo comes equipped with a 17mm coreless motor and high-precision metal gear. It also includes four sets of servo horns and fittings.
Specifications:
- Operating Voltage (max.) [V]: 8.4
- Stalling Torque[N.m]@4.8V: --
- Stalling Torque[N.m]@6.0V: 1.5
- Stalling Torque[N.m]@7.4V: 1.8
- Stalling Torque[N.m]@8.4V: 2.0
- Response Time [s/60°]@4.8V: --
- Response Time [s/60°]@6.0V: 0.090
- Response Time [s/60°]@7.4V: 0.080
- Response Time [s/60°]@8.4V: 0.070

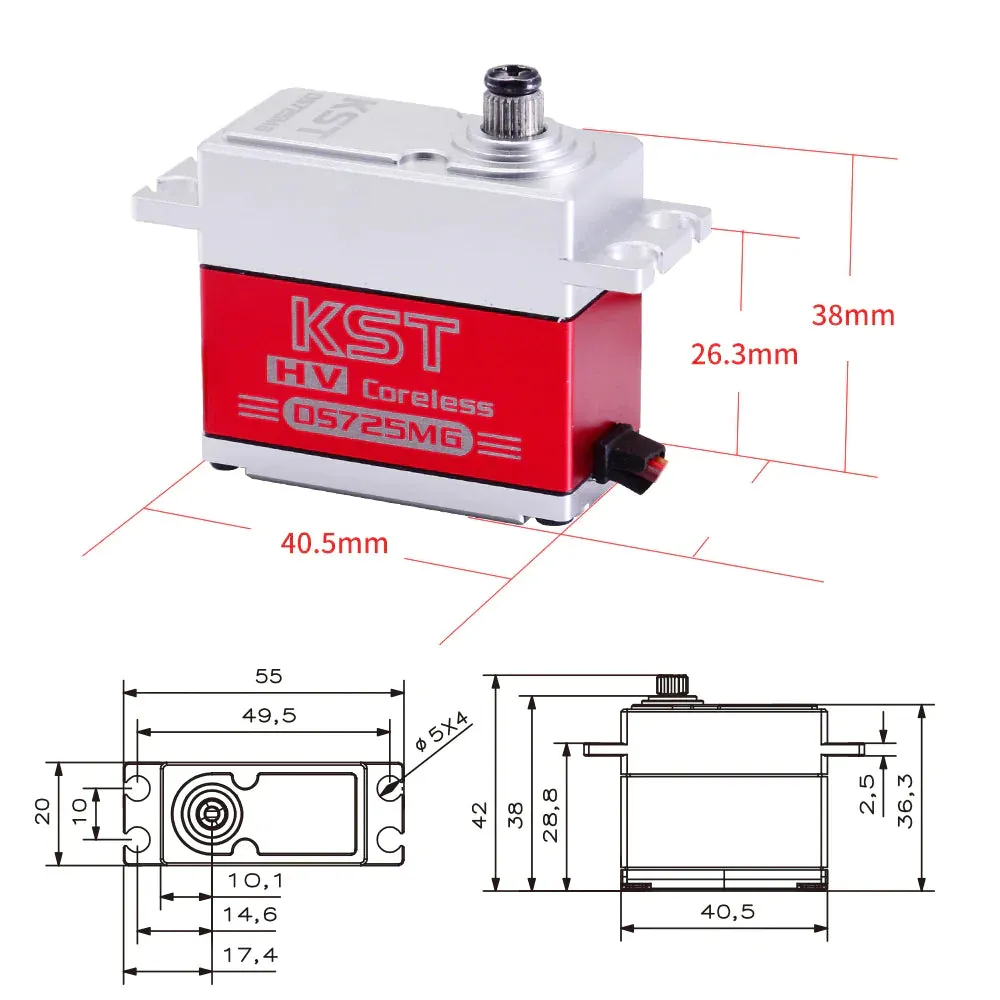

- Width [mm]: 20.0
- Length [mm]: 40.5
- Height [mm]: 38.0
- Weight [g]: 67.0
- Motor Type: Coreless
- Frequency Range: 1520us/333Hz
- Gear Type: Metal
- Bearing Type: 2BB
- Gear Teeth: 25T-6
- Servo Type: Standard
- Electronics: Digital
- Position Sensor: Contactless
- Waterproof: No
- Manufacturer: KST
- Programmable with KST-Tool 1
Package Information:
- Package Size: 7.8 * 6 * 3.8cm / 3.1 * 2.4 * 1.5in
- Package Weight: 128g / 4.5oz
- Comes in a brand gift box package

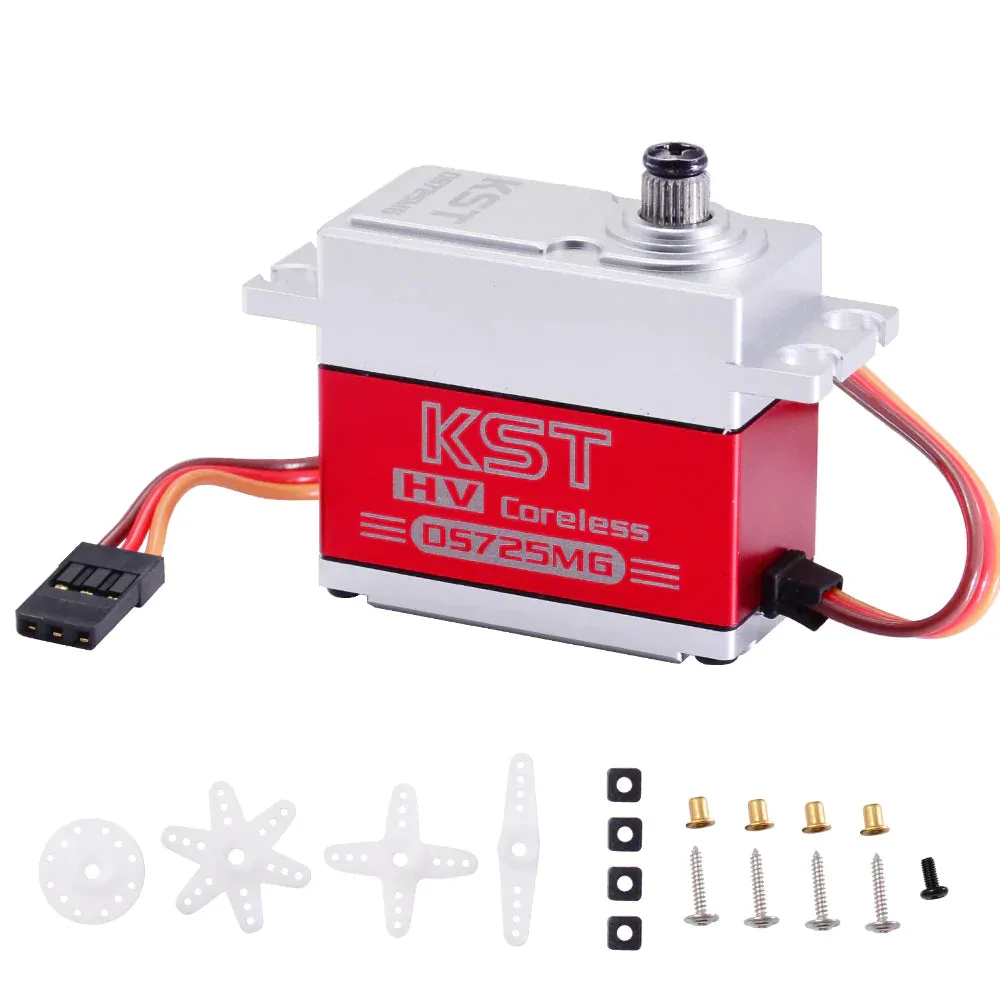

Package List:
- 1 x KST DS725MG V8 Servo
- 4 x Servo Horns and Fittings
