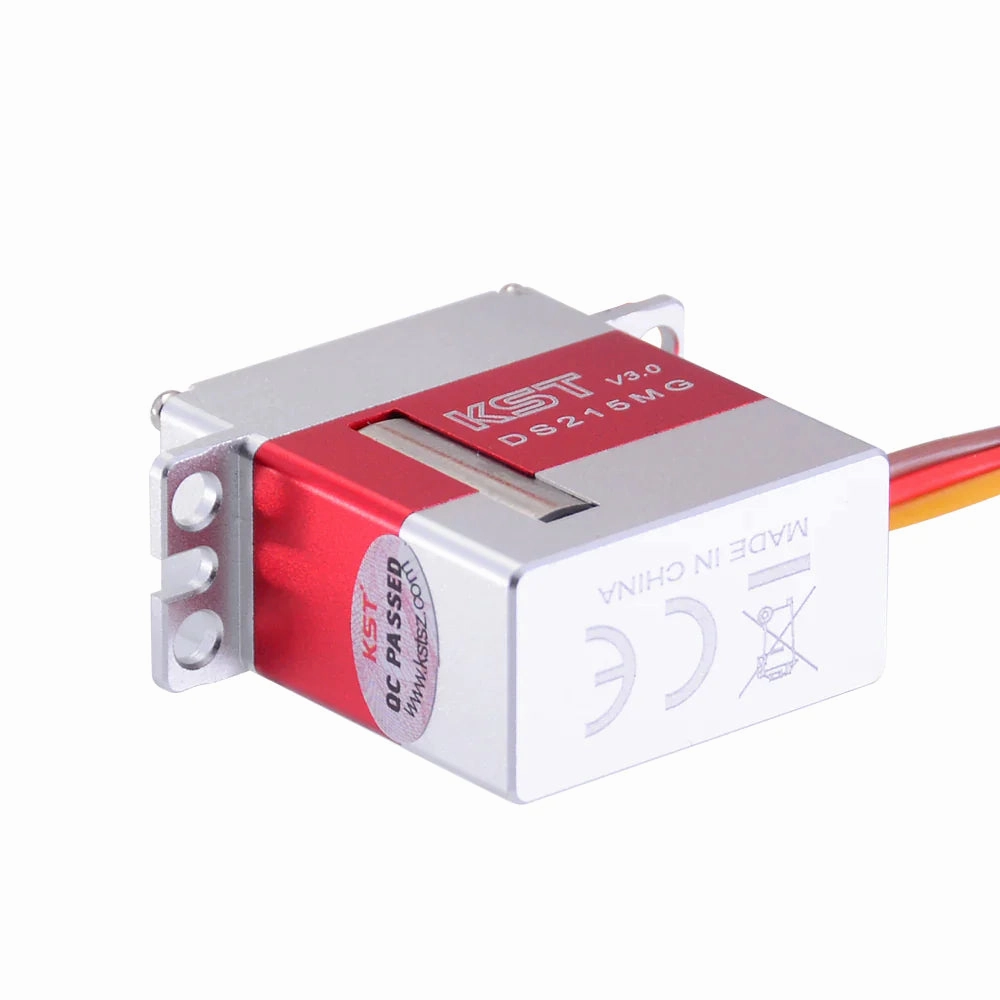

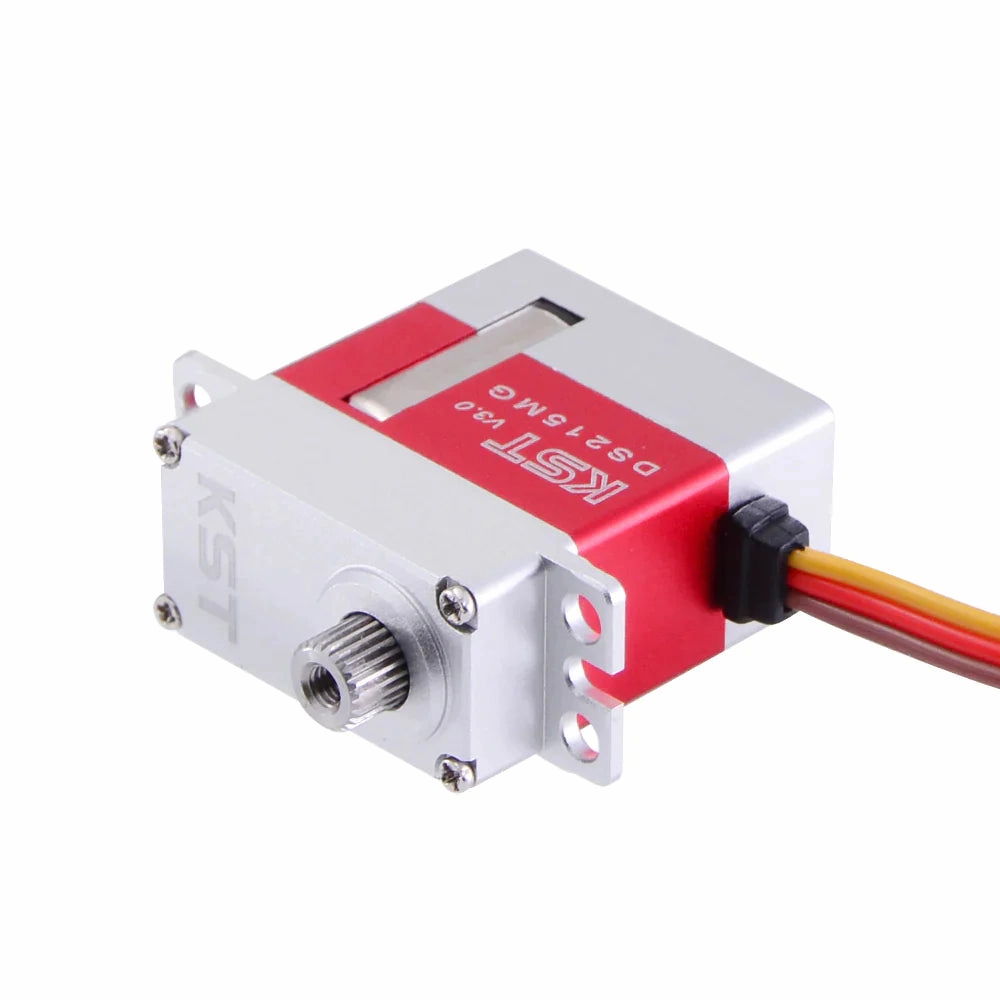

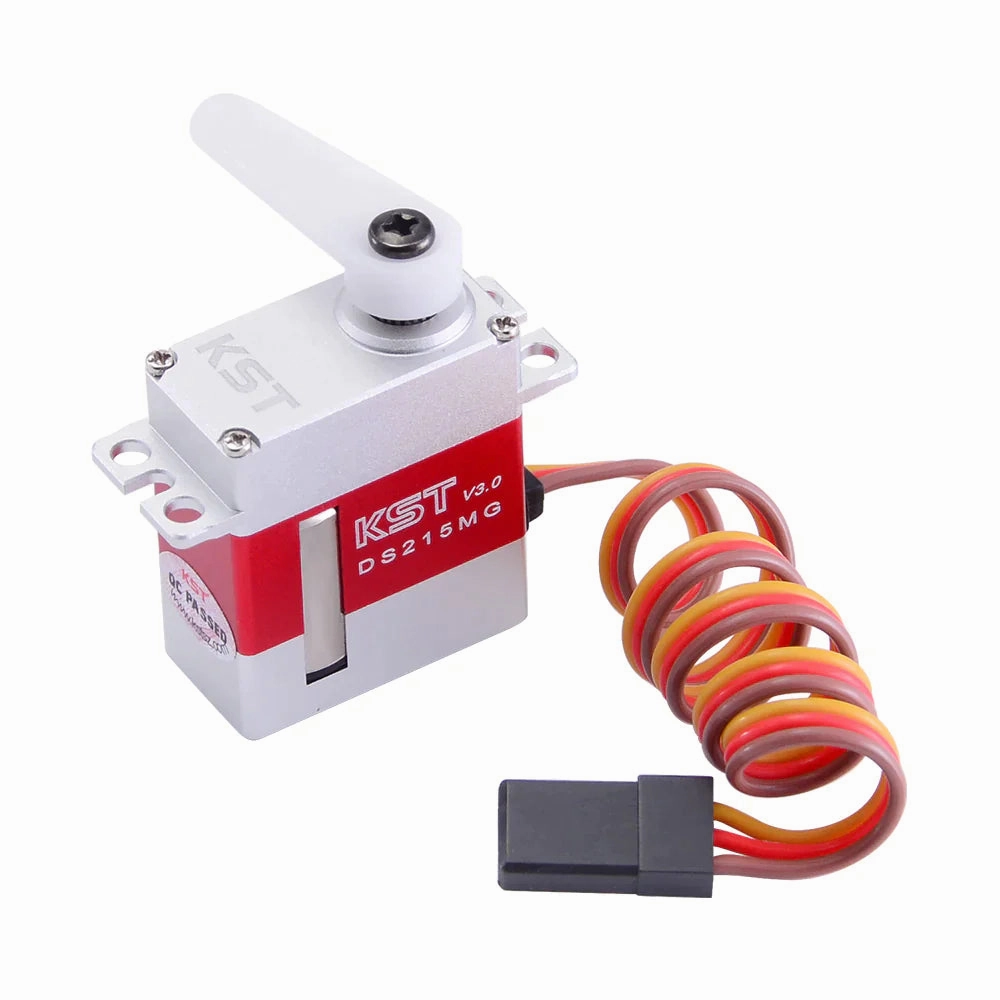

KST DS215MG V8.0 Metal Gear Digital Servo For RC Helicopter

DS215MG HV servo is an amazingly powerful and fast metal cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 3.7 kg.cm of torque, and a rotational velocity of 0.05 sec/60° it combines exceptional power with great precision and market leading speed.

Features

• Compact and lightweight design
• Excellent torque and speed
• Designed for high-performance RC Gliders
• Excellent heat dissipation
• Programmable with KST-Tool 1

Specifications

• Item: DS215MG V 8.0 Micro Servo
• Operating Voltage: DC6.0V-7.4V

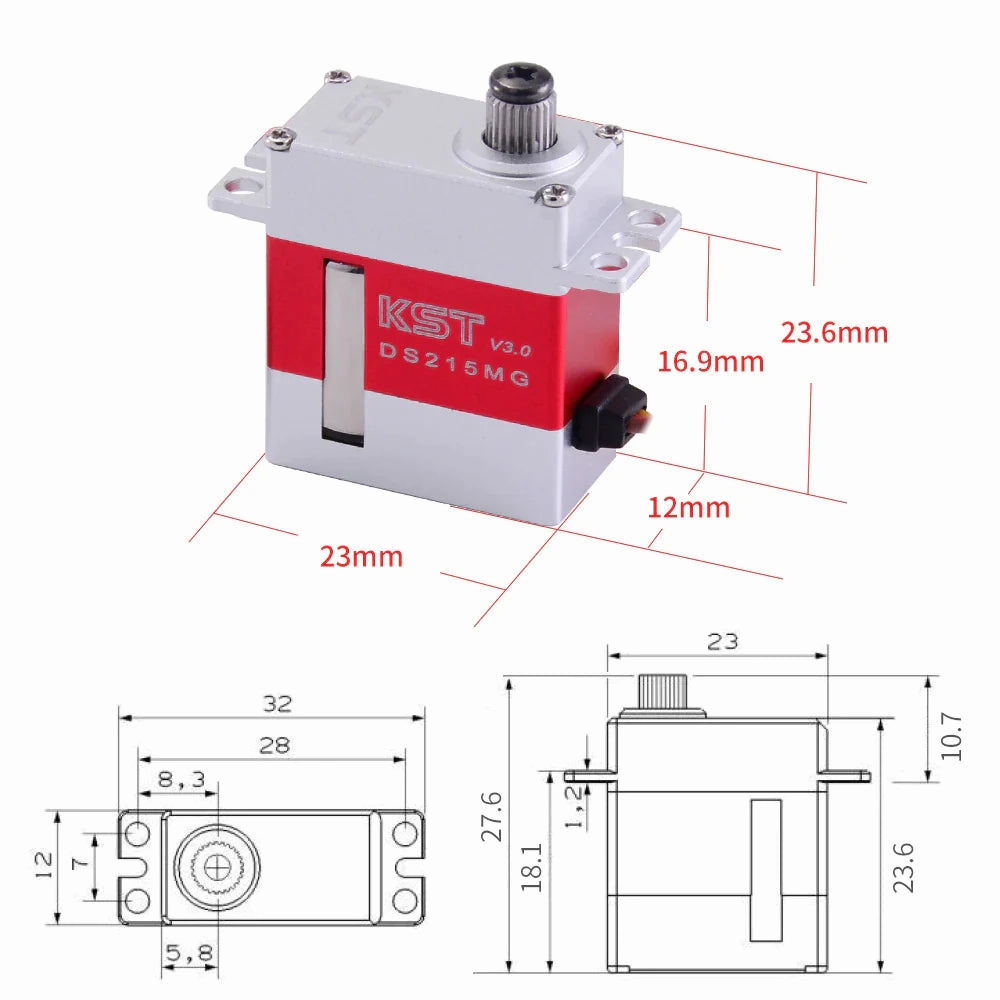

• Size: 23*12*27.50mm
• Torque: [email protected] / [email protected]
• Speed: 0.05sec/60°@7.4V / 0.06sec/60°@6.0V
• Weight: 20g
• Working Frequency: 1520us/333Hz, 800us-2200us
• Motor: Φ12mm Coreless
• Ball Bearing: 2BB
• Accessories: Metal Gear Set

Package Including

• 1 * DS215MG V3.0 Digital Metal Gear Mini Servo Motor
• 1 * Accessories
