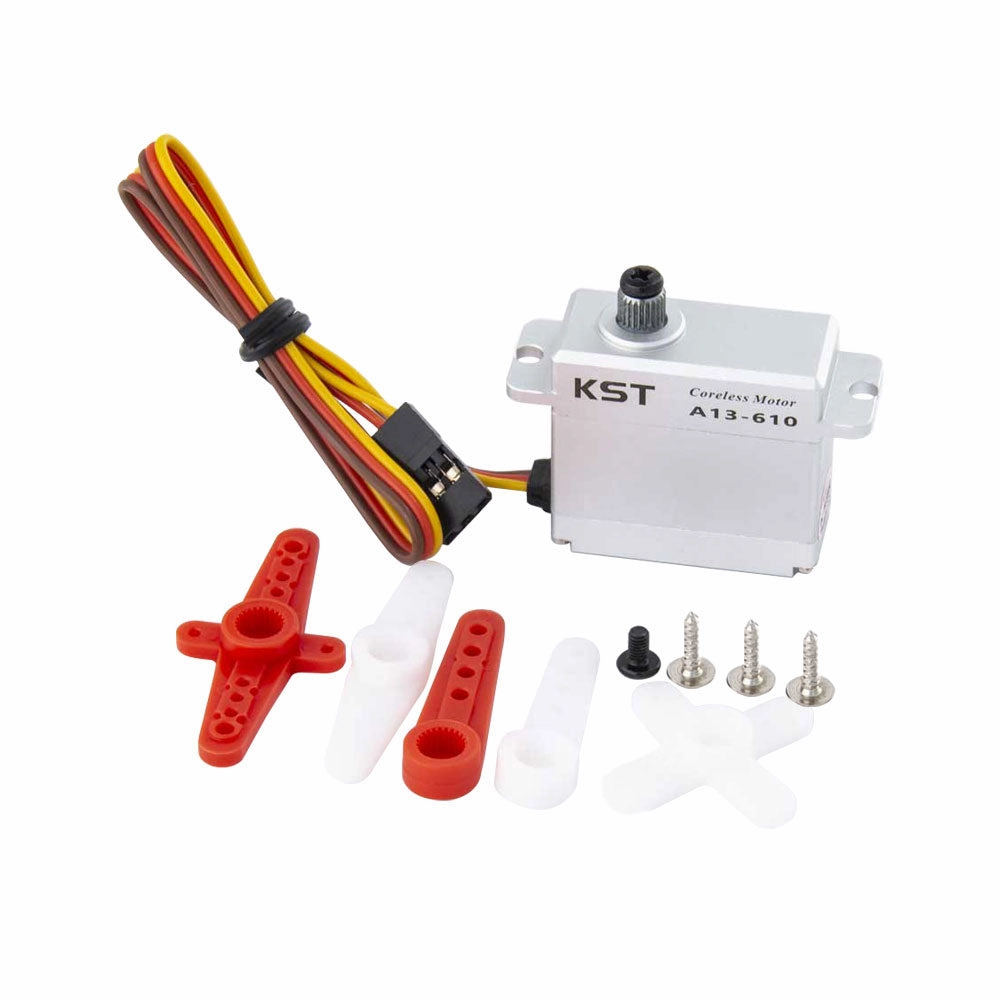

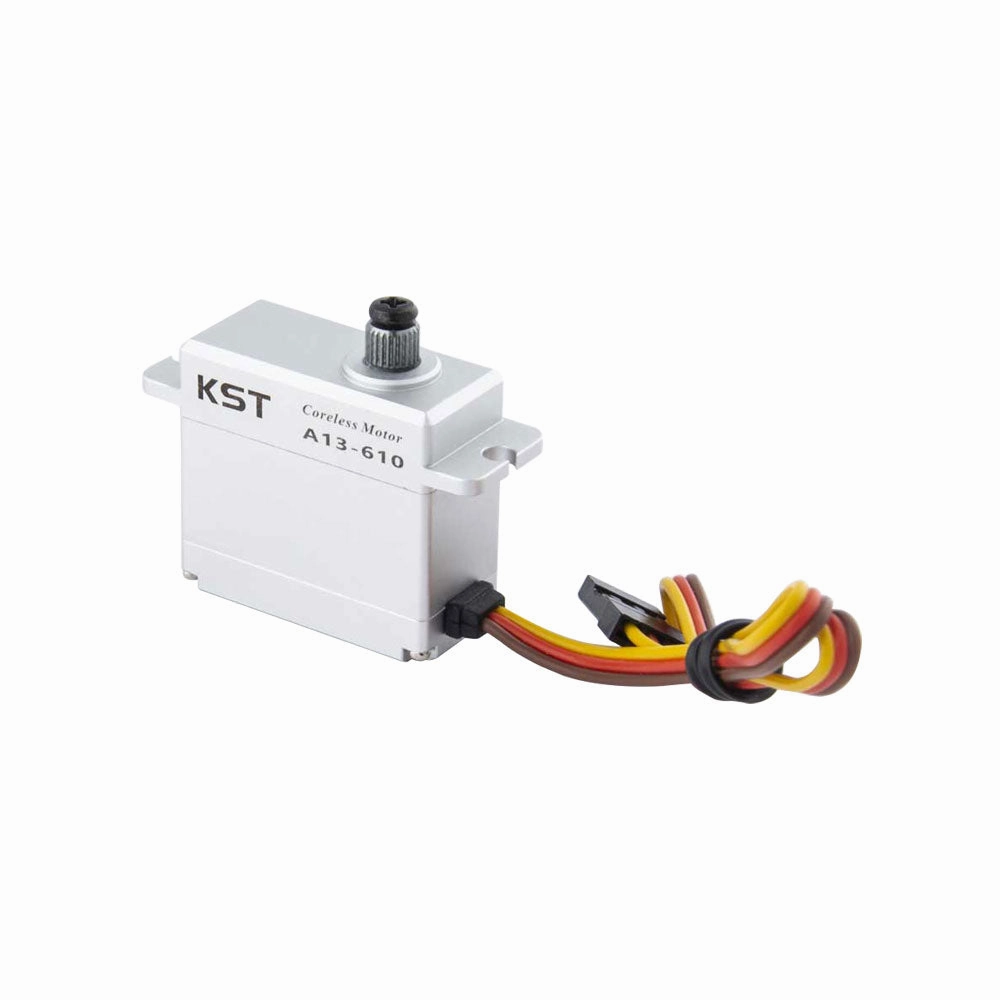

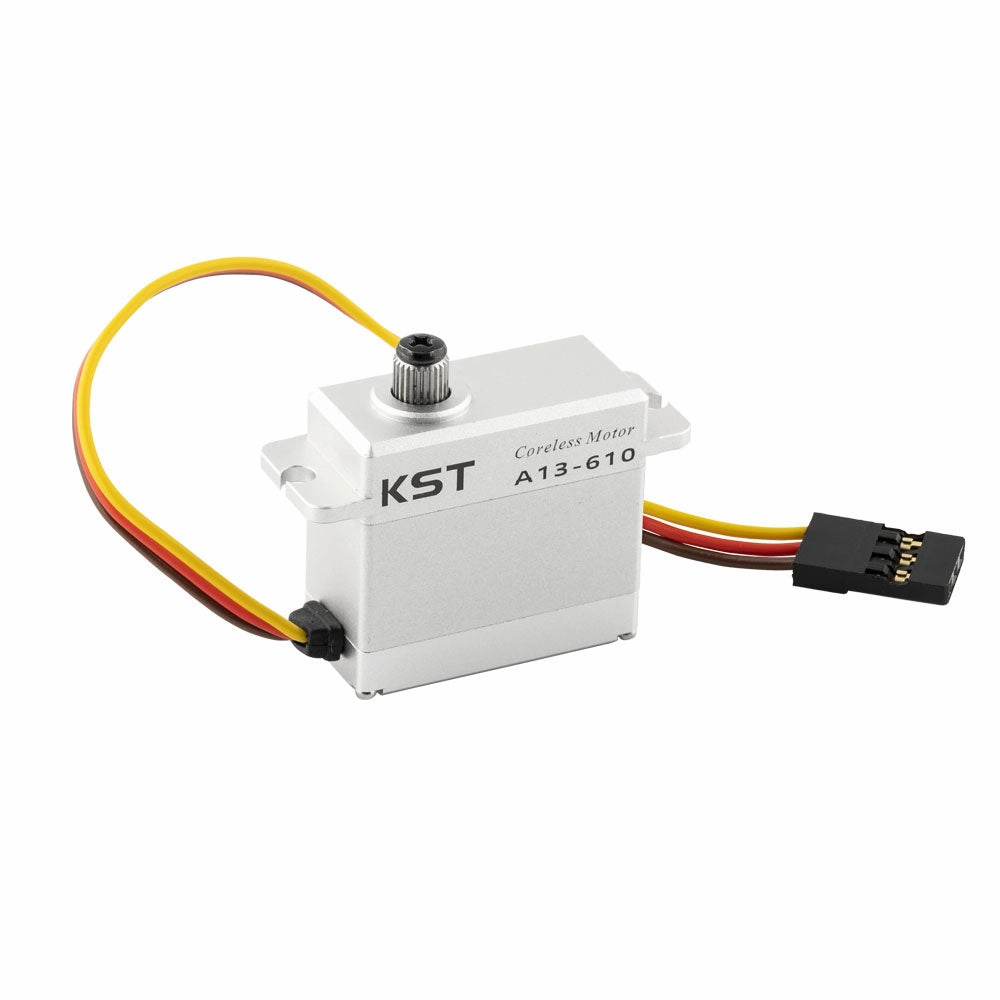

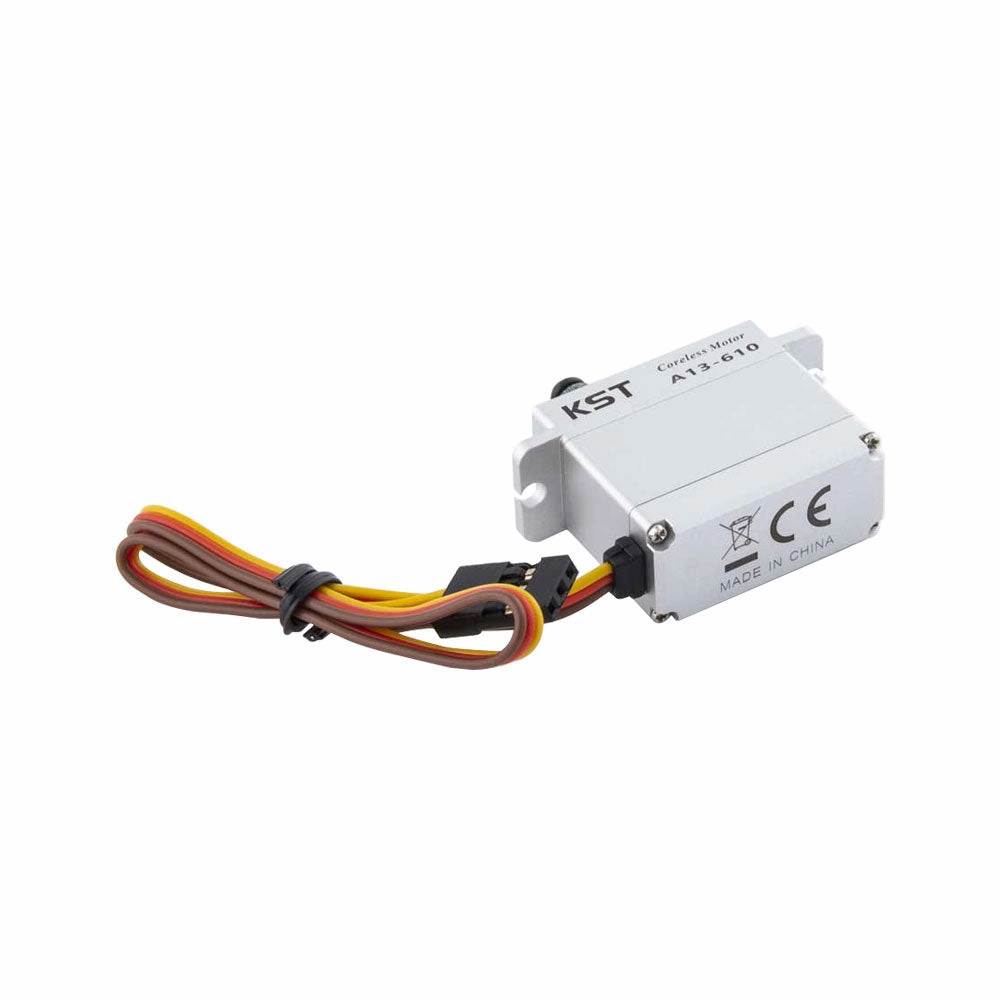

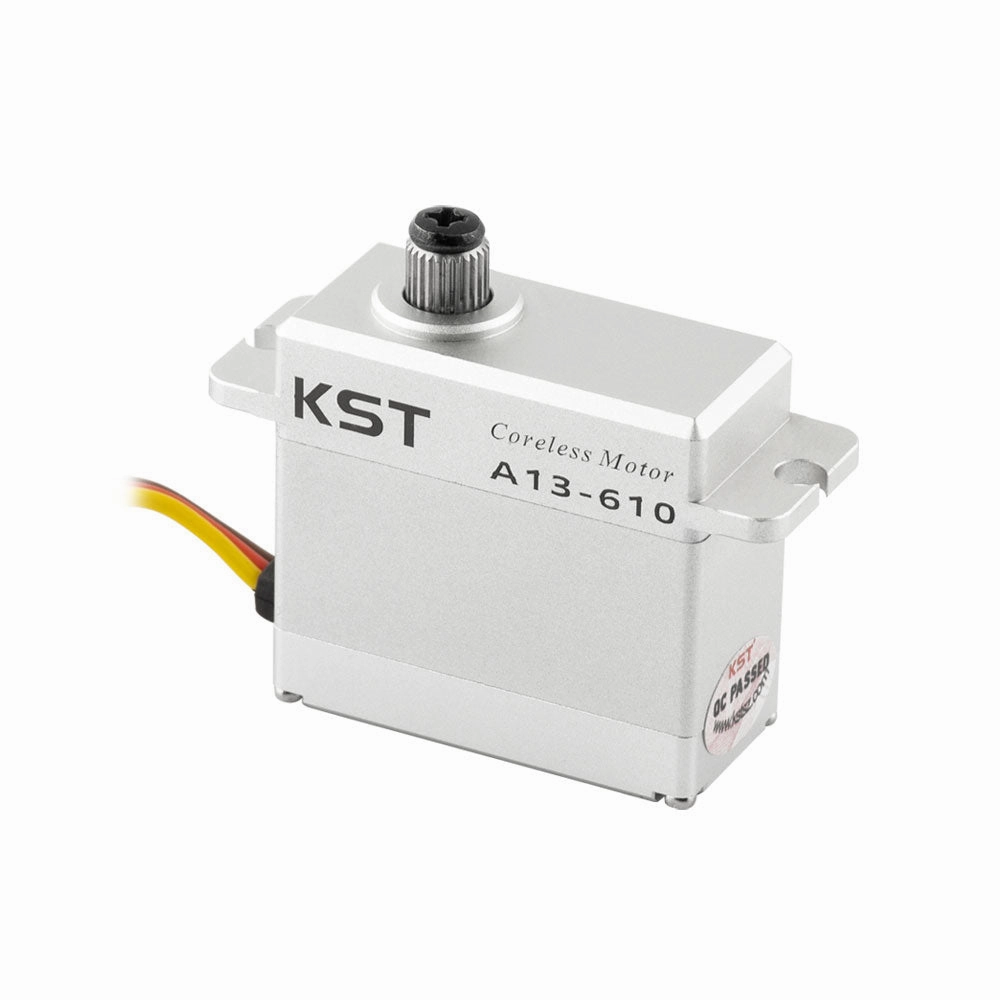

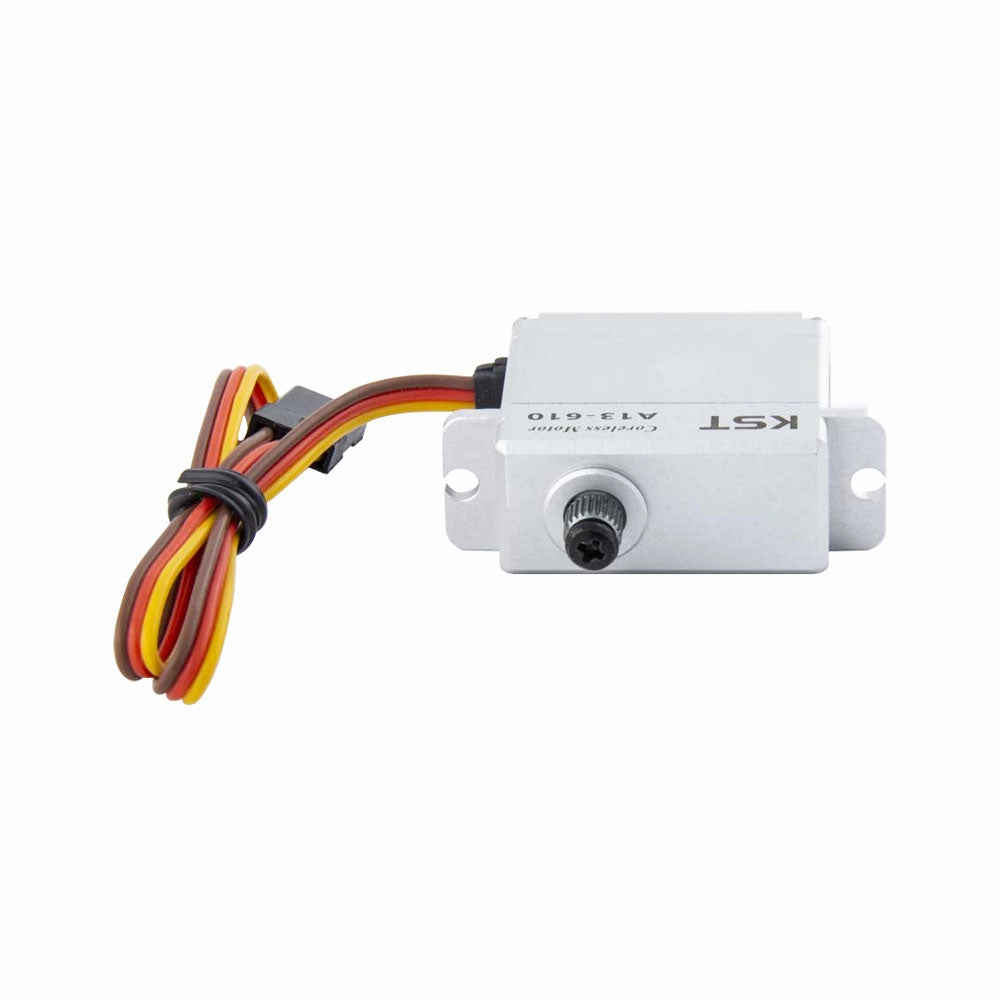

KST A13-610 V8.0 Digital Servo 8.4V 0.10s 9kg.cm 124oz.in
KST Servos are known for their high-quality and affordable prices. Whether you need a servo for a hobby helicopter, glider, industrial equipment, or UAV, KST has a solution for you. With a reputation for performance even under the most demanding conditions, KST servos are the ideal choice for your next competition, mission-critical project, or custom installation. Contact our sales team today to learn more about our OEM and ODM services.
Features:
- Compact and lightweight design
- Excellent torque and speed
- Designed for high-performance RC gliders
- Excellent heat dissipation
- Ultra-slim 13mm body
- Programmable with KST-Tool 1
Specifications:
- Operation Voltage (rated): DC 7.4V
- Operation Voltage Range: DC 6.0V-8.4V
- Torque: 6.5Kg.cm @ 6.0V, 8.0Kg.cm @ 7.4V, 9Kg.cm @ 8.4V
- Speed: 0.12sec/60° @ 6.0V, 0.11sec/60° @ 7.4V, 0.10sec/60° @ 8.4V

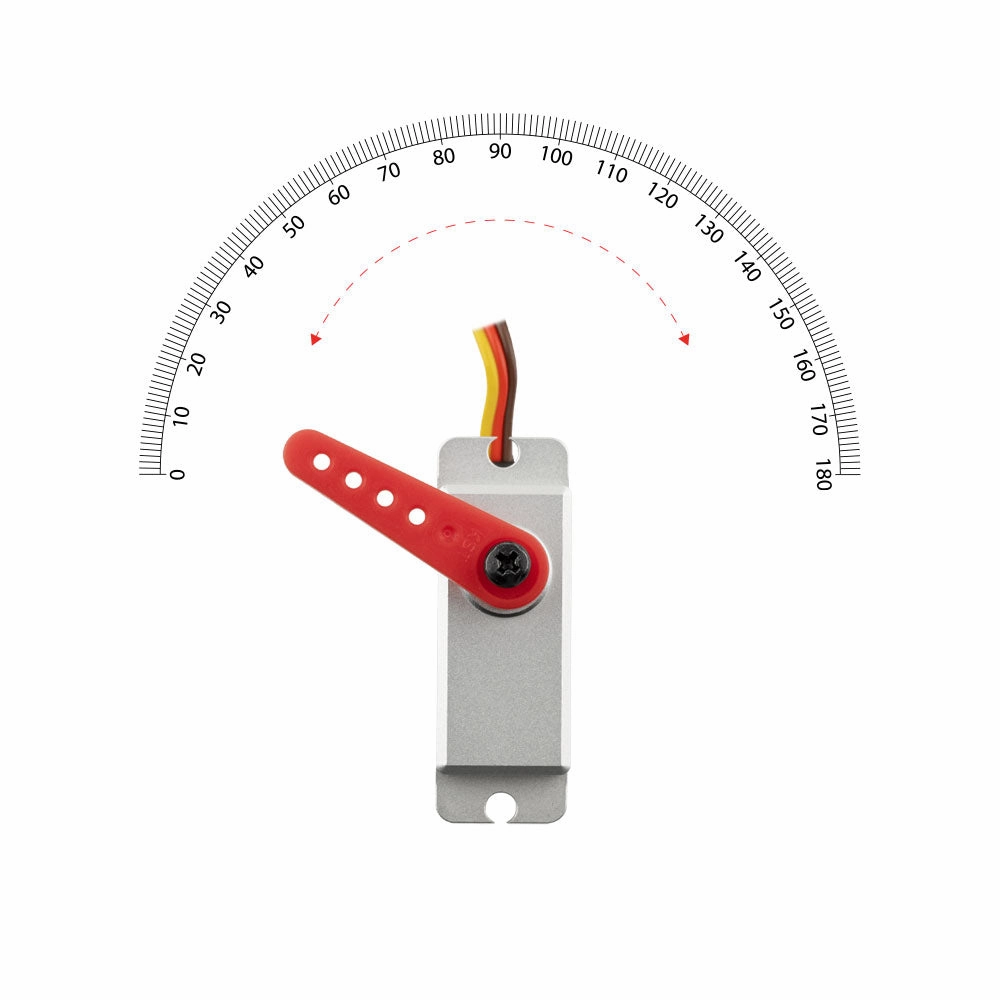

- Travel Angle: ±50° when 1000-2000us
- Operating Temperature Range: -10℃ to 55℃
- Motor Type: Coreless
- Gear Set Material: Hardened Steel
- Shielded Connecting Cable: 26AWG

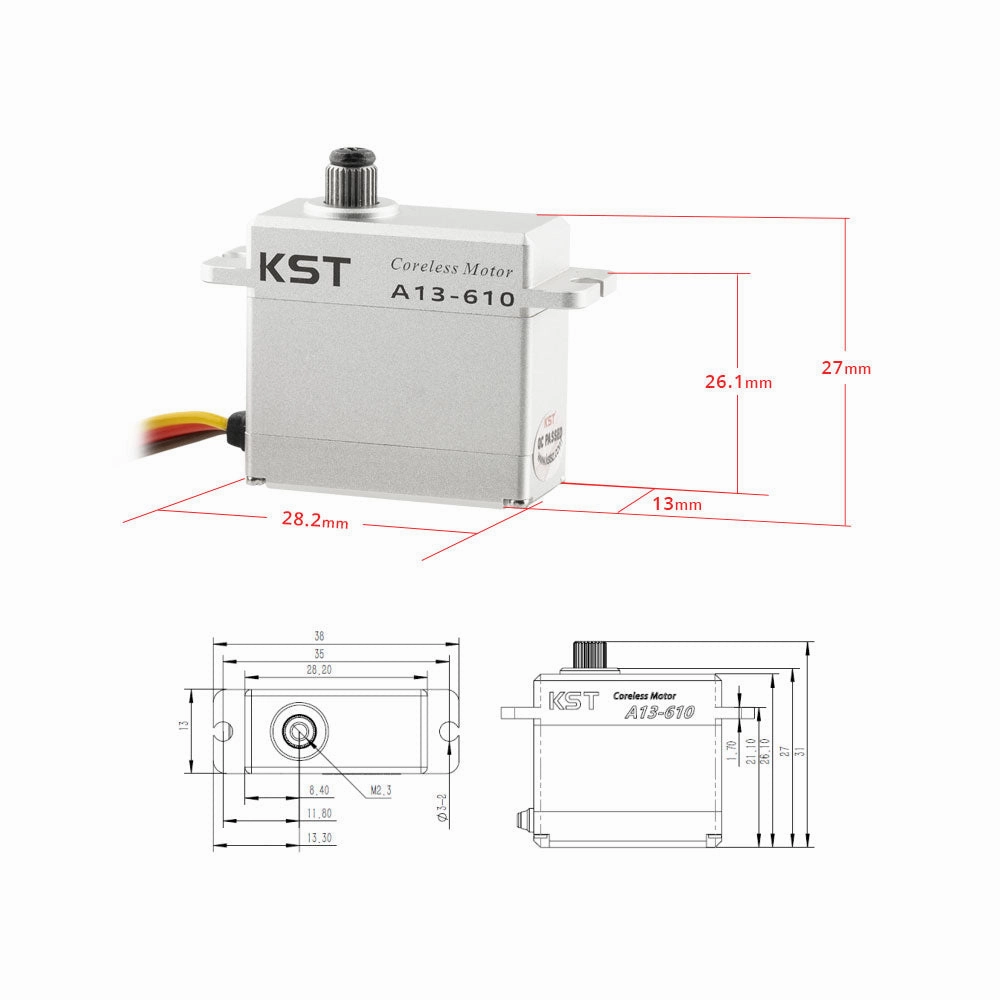

- Case Dimensions: 28.2 * 13 * 27mm
- Weight: 24g
