Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description
With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.
Features
- High Speed and High Torque in a Mini Package
- Durable Metal Gears
- Dual Ball Bearings
- Standard Programmable Digital Circuit for Greater Holding Power
- Fast, High Torque
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Accessories
- Metal Gear Set | Link |
- Metal / Plastic 1st Gear Set | Link |
- Plastic Case Set | Link |
- Applicable Horns

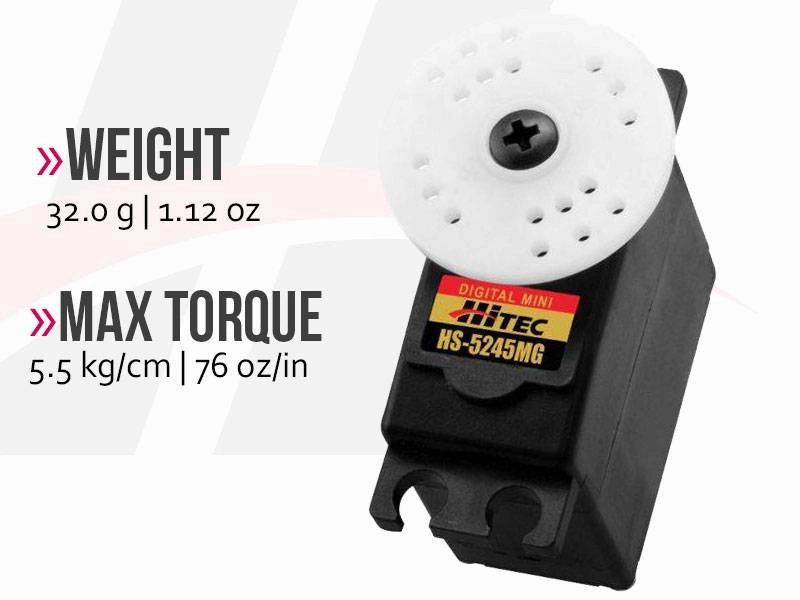

HS-5245MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.15 ~ 0.12 |
| Maximum Torque Range oz. / in. | 61 ~ 76 |
| Maximum Torque Range kg. / cm. | 4.4 ~ 5.5 |
| Current Draw at Idle | 3 mA |
| No Load Operating Current Draw | 300 mA |
| Stall Current Draw | 1,200 mA |
| Dead Band Width | 4 µs |
| Physical Specifications | |

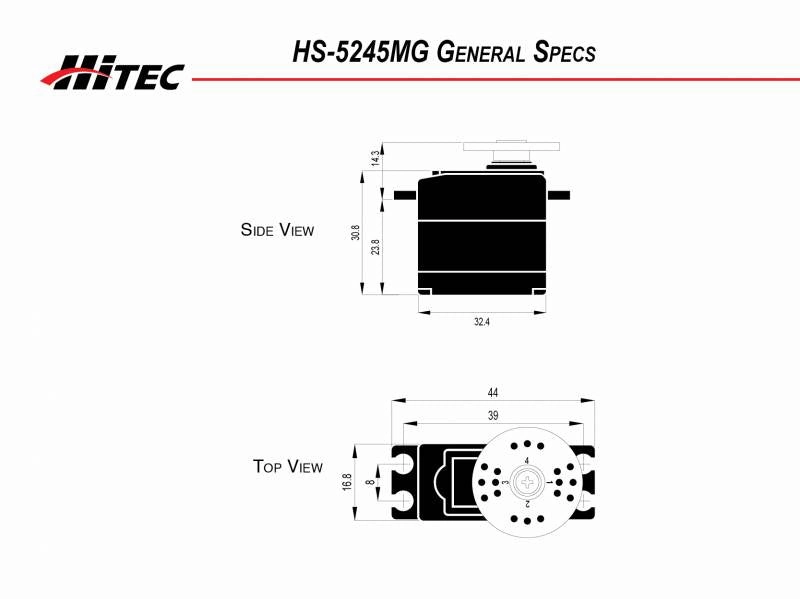

| Dimensions (Inches) | 1.27 x 0.66 x 1.21 |
| Dimensions (Metric) | 32.4 x 16.8 x 30.8 |
| Weight (Ounces) | 1.12 |
| Weight (Gram) | 32.0 |
| Circuit Type | G1 Programable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 50 - 64 oz. |
| Sailplane | 3 meter |
| 3D Performance | 50 - 64 oz. |
| Scale | N / A |
| Electric Helicopter | 500mm |
| Gas Helicopter | 50 - 59 Class |
| On Road | 1/12th |
| Monster Truck | N / A |
| Buggies | N / A |
| Truggies | N / A |
| Short Course / Truck | N / A |
| Crawlers | 1/18th |
| Sail Boat | < 1 meter |
| Power Boat | 1/16th |
