Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description
Micro Servo! Major Power!

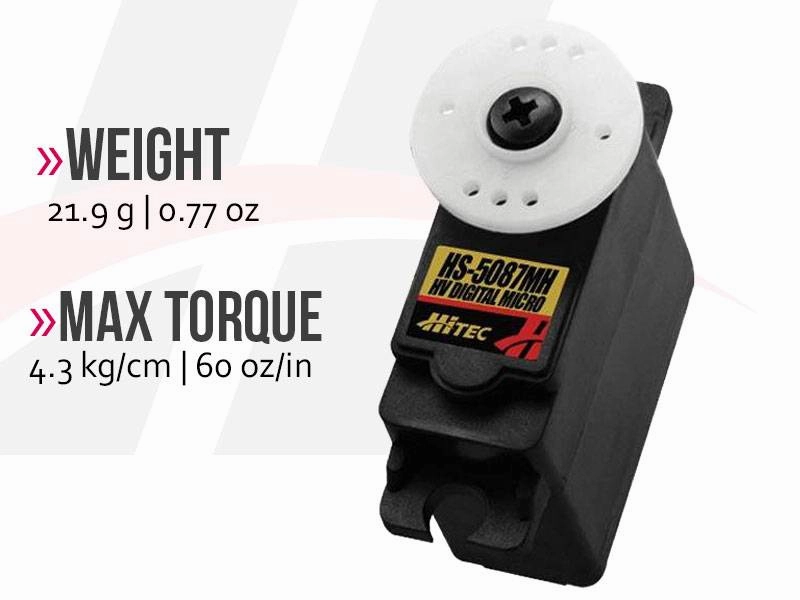

The HS-5087MH digital, metal gear micro servo is the high voltage version of our ever popular HS-5085MG. Built with a 3-pole ferrite motor and heavy-duty metal gears, this servo will bring maximum performance to your hobby and deliver extra power with a 2-cell 7.4V LiPo battery. Whether you are a beginner or an expert in the RC field, our HS-5087MH will provide the strength and capability you need and want in a micro servo. Drivers will find it the perfect steering servo for their 1/16th scale vehicles. Pilots with .15 to .40-size glow and electric aircraft will relish in its power and reliability. Its precision and performance also make it perfect for 500-size helicopters.
Features
- Our Smallest 7.4v 2-Cell LiPo Capable Servo
- Rugged Metal Gears
- Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit for More Holding Power
- Standard Servo Performance in a Micro Package
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Accessories
- Metal Gear Set | Link |
- Plastic Case Set | Link |
- Applicable Horns
HS-5087MH Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.17 ~ 0.13 |
| Maximum Torque Range oz. / in. | 50 ~ 60 |
| Maximum Torque Range kg. / cm. | 3.6 ~ 4.3 |
| Current Draw at Idle | 3 mA |
| No Load Operating Current Draw | 200 mA |
| Stall Current Draw | 1,750 mA |
| Dead Band Width | 2 µs |
| Physical Specifications | |

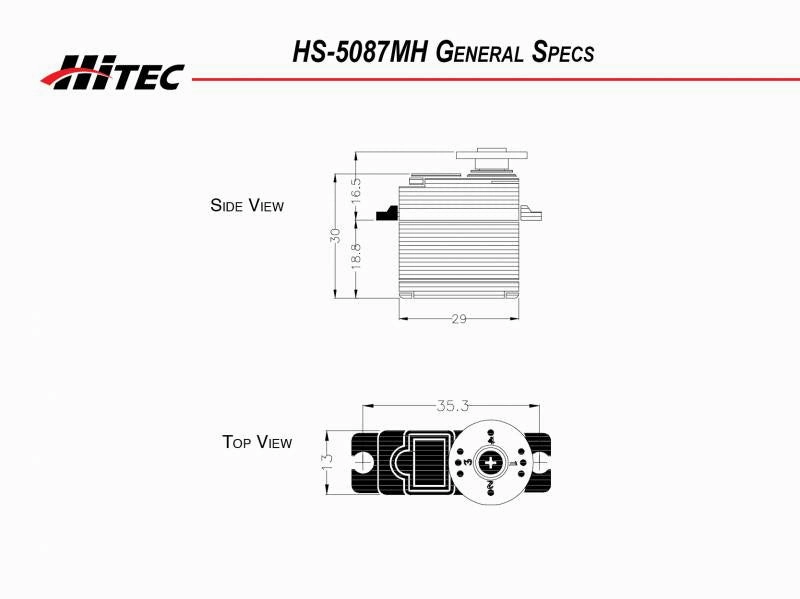

| Dimensions (Inches) | 1.14 x 0.51 x 1.18 |
| Dimensions (Metric) | 29.0 x 13.0 x 30.0 |
| Weight (Ounces) | 0.77 |
| Weight (Gram) | 21.9 |
| Circuit Type | G1 Programable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
| Radio Control Applications | |
| Parkflyer | < 50 oz. |
| Sport Plane | 42 - 50 oz. |
| Sailplane | <2 meter / DLG |
| 3D Performance | N / A |
| Scale | N / A |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | 1/16th |
| Monster Truck | N / A |
| Buggies | 1/16th |
| Truggies | N / A |
| Short Course / Truck | 1/16th |
| Crawlers | N / A |
| Sail Boat | N / A |
| Power Boat | 1/16th |
