Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

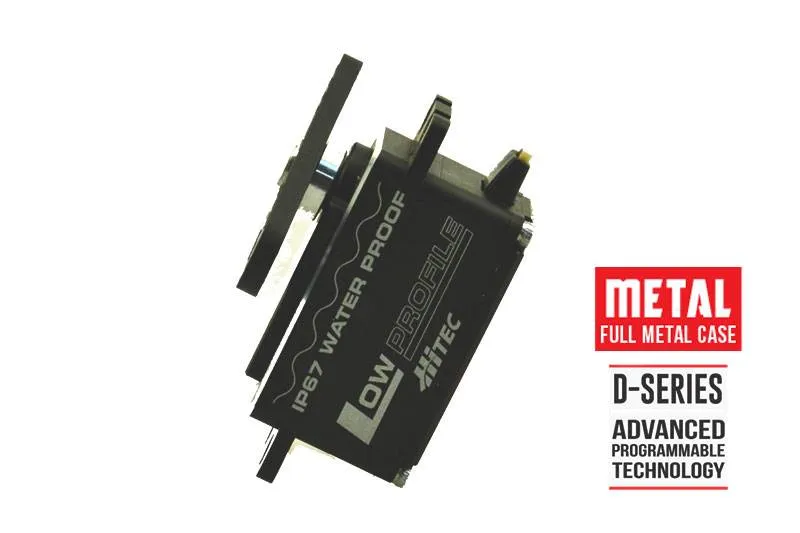

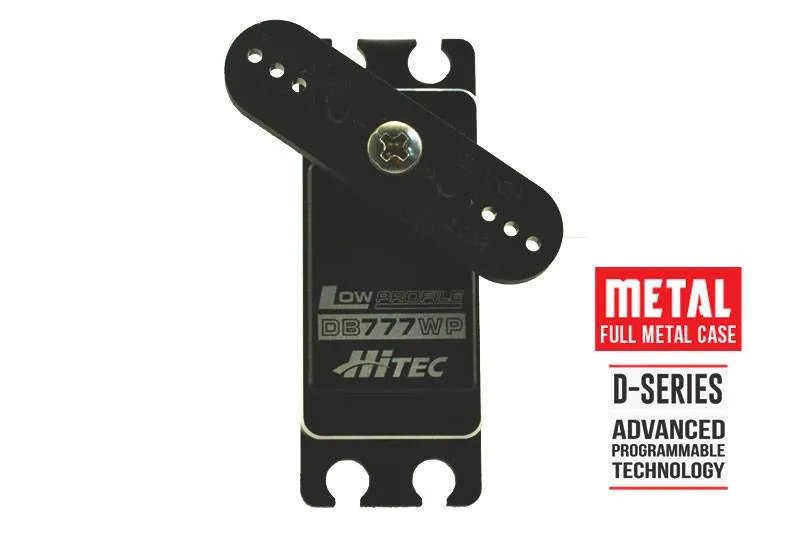

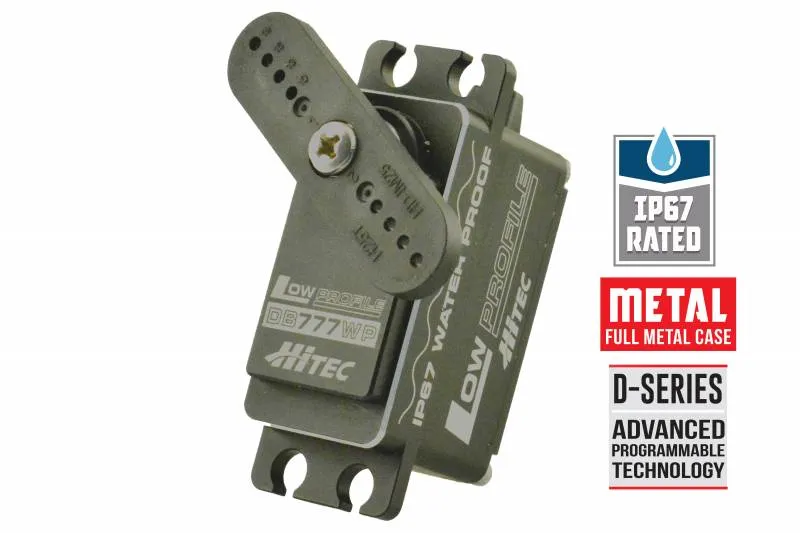

Hitec is excited to introduce the new addition to our D-Series servo line, the high-performance, low profile DB777WP. Designed with a full metal, IP-67 rated waterproof case, this advanced, programmable servo is our fastest, low profile option for 1/10 buggy and touring car drivers. The DB777WP is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter), bringing high resolution, rapid response, and patented Smart Sense technology to kick your ride into top gear! Look to us when you need unprecedented engineering, and the ultimate reliability!
Features
- Voltage Range is 4.8V - 8.4V
- Full Programmability
- IP-67 Waterproof Rated
- Ultra Efficient Brushless Motor
- 32-Bit MCU Technology / 4096 Resolution
- Smart Sense Technology for Servo Analytics
- High Response, High Resolution Circuitry
- Full Metal Case
- 1M Cycle, Long-Life Potentionmeter

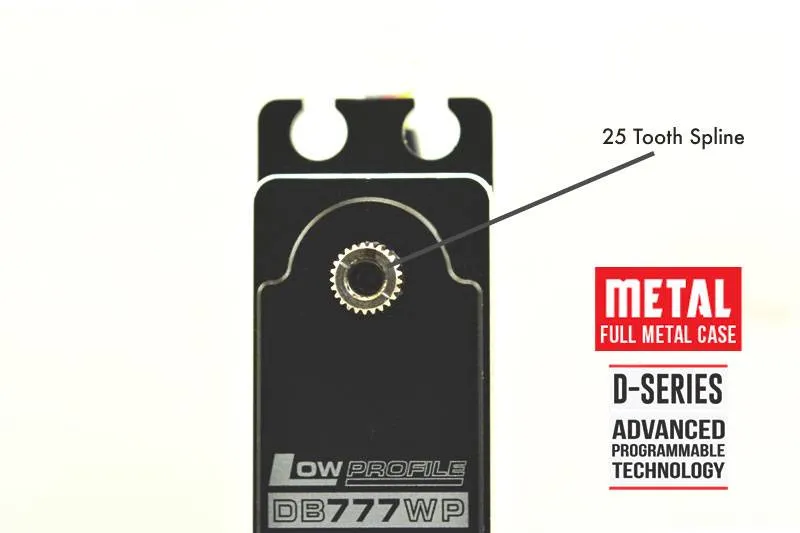

- H25T -Industry Standard Output Spline
- Compatible with Fully Charged 2S LiPo Batteries
DB777WP Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.08 ~ 0.06 |

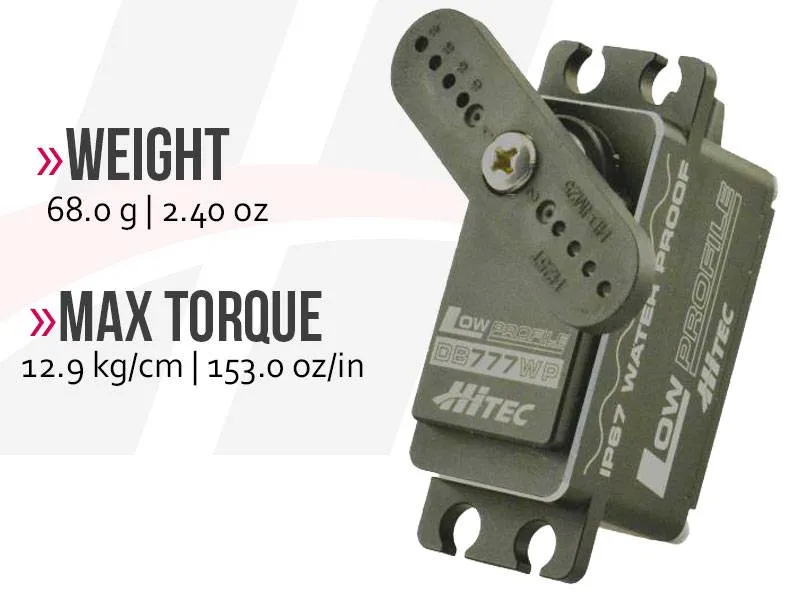

| Maximum Torque Range oz. / in. | 111 ~ 153 |
| Maximum Torque Range kg. / cm. | 8.0 ~ 11.0 |
| Current Draw at Idle | 35mA / 40mA |
| No Load Operating Current Draw | 250mA / 350mA |
| Stall Current Draw | 3500mA / 4500mA |
| Dead Band Width | 1usec |
| Physical Specifications | |

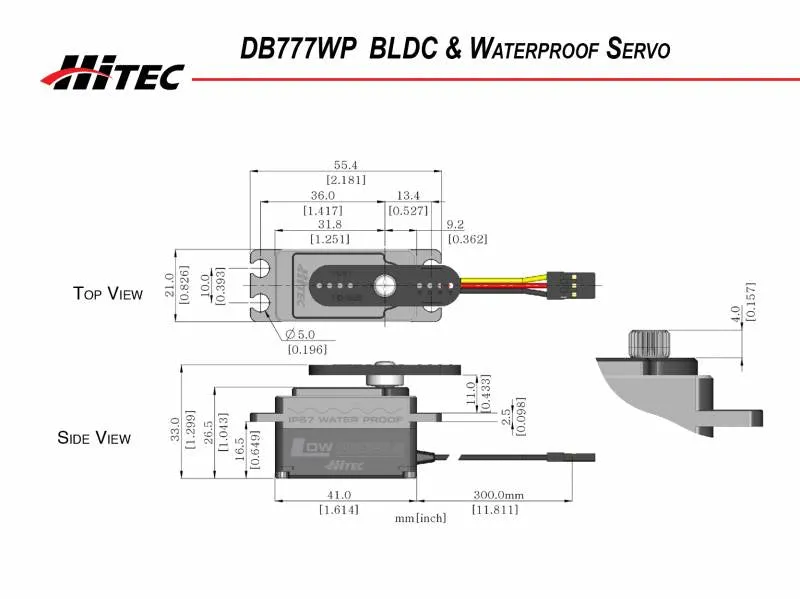

| Dimensions (Inches) | 1.61 x 0.83 x 1.04 in. |
| Dimensions (Metric) | 41.0 x 21.0 x 26.5 |
| Weight (Ounces) | 2.40 |
| Weight (Gram) | 68.0 |
| Circuit Type | 32bit Programable Digital |
| Motor Type | Brushless |
| Gear Material | Metal |
| Bearing Type | Brushless |
| Output Shaft (type / Ømm) | H25T |
| Case Material | Aluminum |
| Dust / Water Resistance | IP-67 Rated |
| Connector Gauge (AWG) / Strand Count | 20AWG / 80 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | N / A |
| Sailplane | N / A |
| 3D Performance | N / A |
| Scale | N / A |
| Electric Helicopter | N/A |
| Gas Helicopter | N/A |
| On Road | 1/8th |
| Monster Truck | N/A |
| Buggies | 1/8th |
| Truggies | N/A |
| Short Course / Truck | N/A |
| Crawlers | N / A |
| Sail Boat | N / A |
| Power Boat | N / A |
