Features:

◆ Programmable Smart Servo

◆ Ultra-Fast Standard Tail Servo

◆ Long Life Brushless Motor

◆ Fast Cooling Aluminum Case

◆ High Quality TYU Servo Cable

◆ Super-Sturdy Steel And Titanium Gear

◆ Suitable for OXY5 MEG, SAB GOBLIN RAW 700, 450-700 Class Helicopters, ect.

Description:

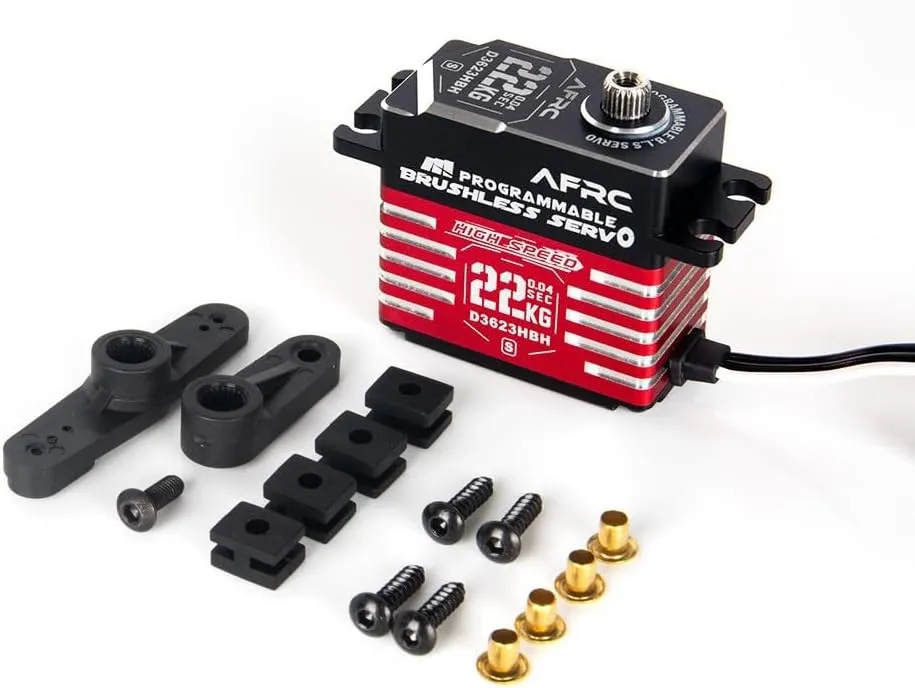

Model: D3623HBH-S

Dimensions: 40 x 20 x 37.5 mm

Weight: 76g (No including accessory)

Working voltage: 4.8~ 8.4V

Motor type: Brushless motor

Gear type: Strength steel

Case type: Aluminum alloy

Waterproof: IP65

Torque:

4.8V：11.0 kg-cm

6.0V：14.0 kg-cm

7.4V：18.0 kg-cm

8.4V：22.0 kg-cm

Speed:

4.8V：0.070 sec/60°

6.0V：0.060 sec/60°

7.4V：0.048 sec/60°

8.4V：0.035sec/60°

Note:

This model is a helicopter tail servo with an input signal of 760us (666hz), which needs to be used in conjunction with the helicopter gyroscope. If it needs to be changed to an ordinary servo signal of 1520us (333hz), it can be modified by the servo programmer.
