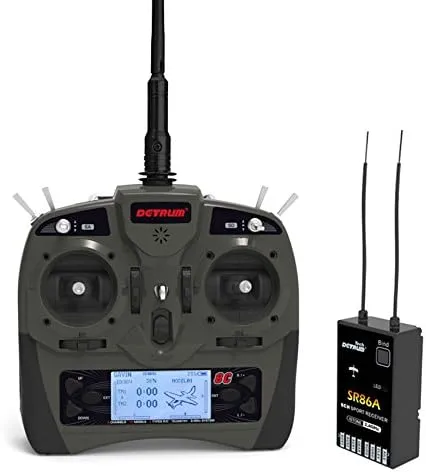

Dynam Detrum GAVIN-8C Transmitter with Istone SR86A receiver
Made By: Dynam
Item No.: DTM-T010

GAVIN-8C Radio Control Sysytem
Package Content:
1x GAVIN-8C Transmitter
1x SR86A Receiver

GAVIN-8C Transmitter
01. Wireless IC
Adopting powerful wireless chips, extended with power amplifier (PA) and low noise amplifier (LNA), can maximize the system output power while reducing the system noise factor, thereby improving the signal coverage.
02. All-angle antenna
The transmitter uses excellent linear all-band gain antenna, can greatly improve the transmitting efficiency, thereby enhancing the stability of the R/C system. The receiver adopts diversity antenna, combined with the signal detection and switching algorithm, the receiving signal is stable and reliable.
03. Suitable for various aircrafts
04. Fast response
05. Long distance remote control
06. LCD 192*96 high-resolution dot-matrix LCD screen
07. Unique ID code
08. Fail safe function
09. High section precision
10. Low voltage alarm
11. USB Upgrade
12. Setting the programmable items of flight controller for airplane

SR86A Sport Receiver:
Output Signals: 8-channel PWM
Channels: 8-channel
Sensor: 6-axis gyro
Sensitivity: -97dBm
Output: PWM (71Hz)
Transmission Range: More than 1,000 meters on the ground /more than 1,600 meters in the air
Input Voltage: 3.6V-16V
Size: 51mm*28.4mm*14.5mm
Weight: 15g
