- ✅ Authentic Scale Design with Smart Navigation Integration: The BELL 206 470-class RC helicopter features a meticulously detailed scale fuselage and is driven by a high-performance 16V motor for stable, controlled flight. Integrated H1 flight controller with Beidou GPS and omnidirectional positioning provides upright/inverted position hold and auto return-to-home when low battery or signal loss occurs
- ✅ 700-Class FBL Rotor Head for Enhanced Flight Dynamics: Equipped with a 700-class flybarless rotor system, this aircraft delivers smooth, agile, and precise response compared to conventional 450L DFC setups. The upgraded swashplate, along with reinforced 470L main and spindle shafts, ensures structural strength and long-term flight stability
- ✅ Robust Transmission System with Quick-Access Maintenance: Built for demanding conditions, it includes a full-metal main gear and M3 arc-tooth industrial belt drive. The torsion-spring belt pulley allows for rapid, tool-free belt changes in less than a minute—ideal for fast field repairs and ongoing performance reliability
- ✅ High-Performance Powertrain for Demanding Maneuvers: Features a 2816-class high-torque brushless motor and a 32-bit 60A all-metal electronic speed controller. The 16V high-voltage system delivers consistent output, sharp throttle response, and smooth speed transitions—engineered to support advanced 3D flight routines and precision handling
- ✅ Four Customizable Flight Modes for Versatile Operation: Choose from upright hold, inverted hold, GPS-guided auto-route, or manual 3D stunt mode. Perfect for pilots of various skill levels, with intuitive hovering support and programmable flight paths (circle and figure-eight). Inverted hold mode provides unprecedented control and stability during upside-down flight

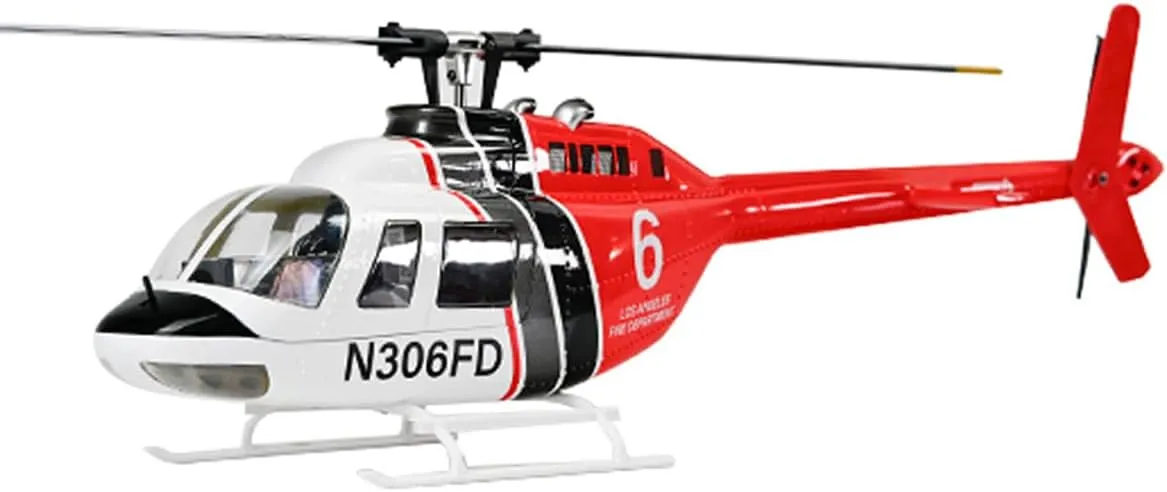

FLYWING Bell-206-V3 470-Class 2.4G 6CH Scale RC Military Helicopter Model with H1 Flight Controller and GPS Positioning (RNP Version/without Battery and Transmitter)
Specifications:
.Material: Metal Electronic Components
.Product Information: FLYWING bell206 V3 (PNP)
.Body Length (excluding propellers): 700mm
.Body Height: 195mm
.Body Width: 120mm
.Weight (excluding battery): 790g,
.Main Rotor Diameter (wingspan): 805mm
.Main Rotor Length (single): 360mm
.Tail Rotor Diameter (wingspan): 164mm
.Gear Parameters: motor gear: 13T, transmission main gear: 8T
.Tail Drive Motor: 2008 brushless motor
.Motor: 2816 brushless motor
.ESC: 60A dual brushless speed regulator
.Flight Mode: GPS self-stabilization mode, 3D manual mode, one-key return, low battery return, out of control return, one-key inverted flight, semi-automatic assisted flight, (circular brush pot, 8-shaped route), satellite positioning module: GPS/GLONASS with omnidirectional positioning, hovering accuracy: horizontal: ±1.5m (When GPS positioning works normally), vertical: ±0.5m (When GPS positioning works normally).
.Product Weight: 2000g
.Package Weight: 3100g
.Product Dimensions: 70 x 12 x 19.5cm
.Package Dimensions: 82 x 27 x 24cm
.Packing: Box
Package Including
.RC Helicopter Body (assembled)*1
.Hand-made Painted Integrated Case *1
