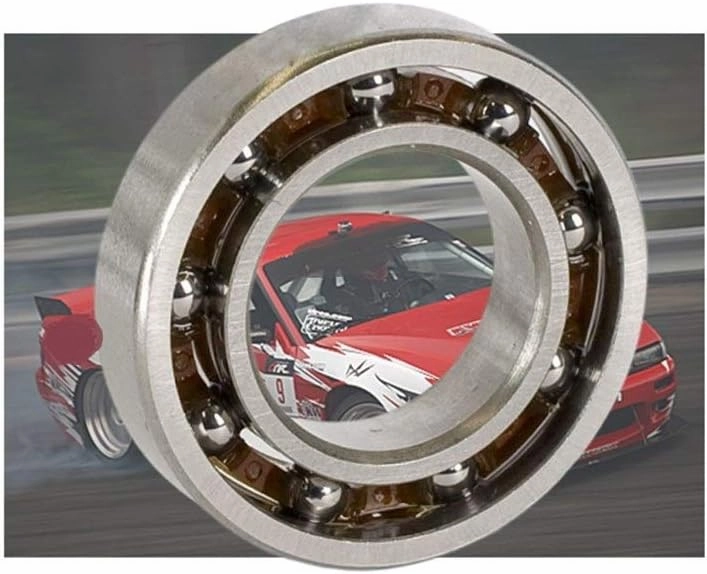

- Inside Diameter: 14 mm; Outside Diameter: 25.4 mm; Width: 6 mm
- ABEC Rating: ABEC 3/P6; Ball Element Meterial: Steel Balls
- Bearing Material: Chrome Steel 52100; Radial Play: C3
- Retainer Material: Polymite Nylon T46; Speed RPM: 38000
- Working Temp Deg C: 135; Balls: 9 PCSl Weight(g): 10
Advantage:
Engine Bearings with Re-enforced Nylon (Polymite )Cages.This special design can withstand higher load than normall,re-enforced cage can use on higher speed and heavy duty.
This bearing is an open design to allow the oil from the fuel to keep the balls well lubricated.
Tips:
Diagnosing: If you hold the head of the engine with your hand and a rattle sound dissapears then you have a worn out rear bearing. The risks/issues of a bad rear bearing are not holding a tune, crank can get worn, and worst of all the bearing comes apart and eats your piston/sleeve.
Installation: The best way to install is to use a bearing puller/installer, makes a very affordable one. If you place the new bearing in the freezer for 15 minutes it will be easier to install.
Positioning: For proper lubrication, face the open side where you can see the balls to the rear of the motor (not the clutch side).
Break In: For the first run of these bearings, We suggests that you fatten your motor up on the high-end needle so the ceramic balls will seat instead of skidding them.
