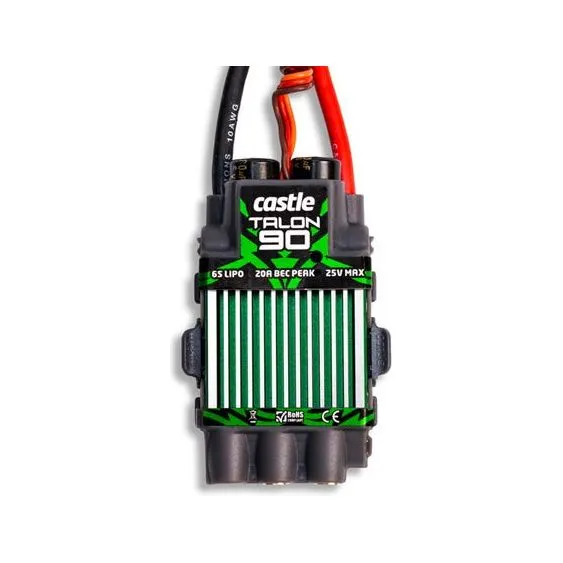

The Talon 90 ESC from Castle Creations comes with a BEC that offers up to 20 amps peak power and 9 amps of continuous power. The Talon 90 is ideal for RC helicopters using 2,000 watts on 6S. If you are the owner of a 500, 550 class or 6S 600 model, this is an excellent choice. You will also find that the Talon will suit fixed-wing aerobats weighing up to 4.5kg and scale ships up to 9kg. Castle have given this ESC an innovative case that allows it to stay cool even in the most difficult mounting locations. This ESC comes with Castle's excellent helicopter functions such as direct entry governor mode. All you have to do is type in the desired RPM using a Castle Link USB adapter (sold separately) and the free Castle Link GUI on a Windows PC.
Features
- 20 amps peak power
- 9 amps of continuous power
- Ideal for helicopters drawing 2,000 watts on 6S
- Great fit for 500 and 550 class helicopters and sport 6S 600 models
- Excellent helicopter functions such as direct entry governor mode
- Will also suit fixed-wing aerobats and scale ships
- Innovative case to keep the ESC cool
Specs
- Amperage
- 60 & Up
- Auto Cutoff
- Yes, programmable
- BEC Voltage
- 6V or 8V, user selectable; 9A continuous, 20A peak output
- Brake
- Yes, programmable
- Continuous Maximum Current
- 90A
- Height
- 0.7 in (18mm)
- Input Connector Types
- Bare wire
- Input Voltage
- 3S-6S LiPo
- Length
- 3.14 in (80mm)
- Output Connector Types
- 5mm female bullets
- PWM Frequency
- Programmable
- Type
- Brushless
- Weight
- 3.0 oz (84.5 g)
- Width
- 1.7 in (43mm)
What you need
- Battery connectors (sold separately)
- Female motor bullets are built into the ESC
- Matching male bullets are included, need to be installed on motor
