- ▲ The key positions such as the chassis, drive shaft, steering cup, etc. movable joints and transmission mechanisms, the manufacturers have installed the loosening screw glue, which really reduces the failure rate by 50% when violently playing the car.
- ▲ The wiring method is reasonable, it will not affect the beauty of the frame, and it will not be affected by gears and movable joints.
- ▲ The differential damping feels good and smooth, and the [bearing spacing] 35mm in the differential can just use our reinforced differential and reinforced differential lock for future modification and use.
- ▲ In terms of CVD transmission shaft (dog bone), the diameter of the transmission dog bone shaft before and after the middle difference is 5mm (3mm-4mm in the market) must be reinforced considering the stability. Front wheel CVD axle diameter 4. 5mm, rear wheel 4mm
- ▲ The thickness of the chassis is 3.5mm (thicker than most model cars of the same scale on the market, which is generally 3mm thick)
Product configuration

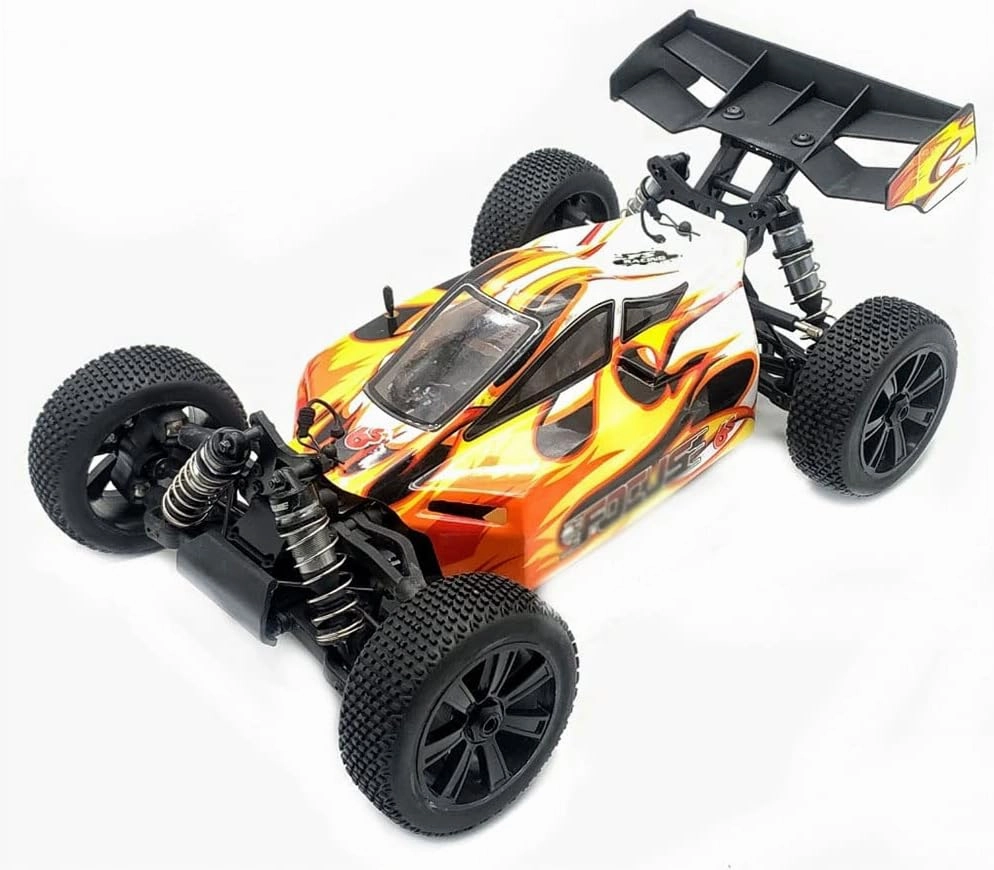

[Name] 1/8 SUV
[Model] 6S power version
[motor parameters] brushless 42742000KV
[ESC parameters] 150A ESC supports 6S power
[Tire Diameter] : 112mm
[Transmission gear ratio] : 9. 5:19
[Model weight]: 3200g
[Body wheelbase]: 330mm
[Chassis material]: AL 6061T6
[Chassis thickness] : 3mm
[Three-dimensional size]: Length 470mm Width: 310MM Height: 195MM
[Tire size]: Diameter 112mm Width: 41mm
Package:
Remote control car*1
Remote control*1
Rechargeable battery*2
Charger*1
Other*1
