- ty arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
- Throttle calibration funtion: Throttle can be calibrated to be compatible with different transmitters. User programmable.
- Mulle procedure methods ported: transmitter stick, LED procedure Card. Very easy to procedure the ESC at home or at the ing field. Timing can be ced to be suitable for different brushless motors.
- This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5-1.7kg/cm (4.8V-6V) torque. Pretty strong regarding its size.
- Full ion: low vole cutoff ion / over-heat ion / throttle signal loss ion.
Specification:
ESC Parameters:
t: 40A
Output acity: Continuous t 40A, Short-time t 55A (not less than 10 Seconds)
Power Input: 2-4 Lithium Batteries(Not Included)
BEC Output: 5V@3A (Linear Regulator Mode - Linear Mode)
Maximum Speed: 210,000 rpm for 2-pole Motor, 7000 rpm for 6-pole Motor, 35,000 rpm for 12-pole Motor
Size: (Approx) 68x25x8mm
9g Servo Parameters:
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No Load Speed: 0.12 sec / 60 deg (4.8 V)
Locked-r Torque: 1.5-1.7kg/cm (4.8V-6V)
Operating Temperature: -30 60 degrees Celsius
Dead Zone Setting: 5 Microseconds
Working Vole: 4.8V-6V
Motor Parameters:
KV: 2200
Ri(M Ω): 0.033
Battery: 2-3Li-Po
Max Power: 342W
Test Prop: 7x3/7x4
Motor Size: 27.5x38mm
Shaft Diameter: 3.17mm
Package Information:
Package Size: 7*5*2cm
Package Weight: 135g
Plastic Package

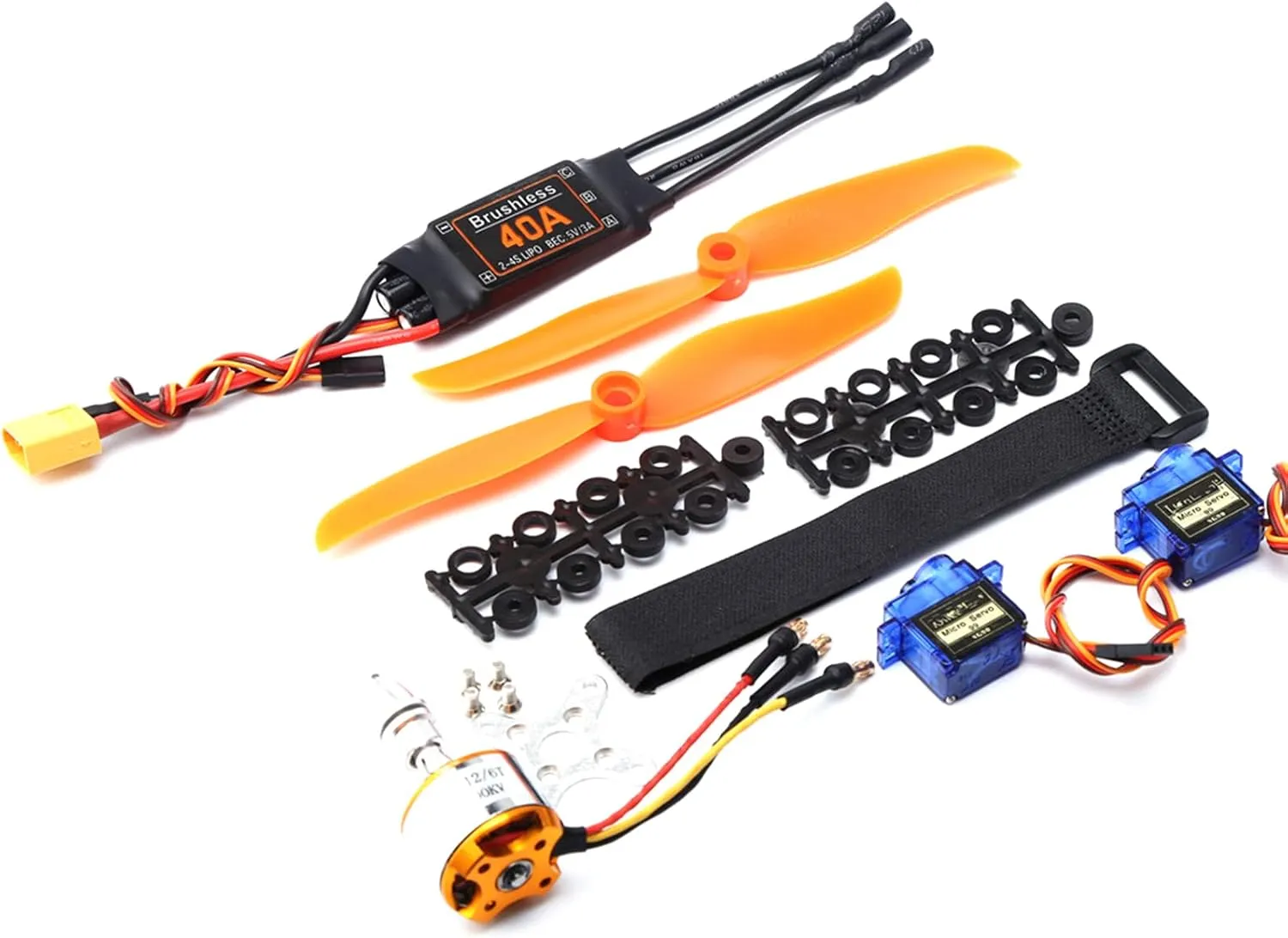

Packing List:
1* 2200KV Motor
1* 40A ESC(XT60 Plug)
2* 9g Servo
2* 6035 Propeller
1* Some Other Fittings
