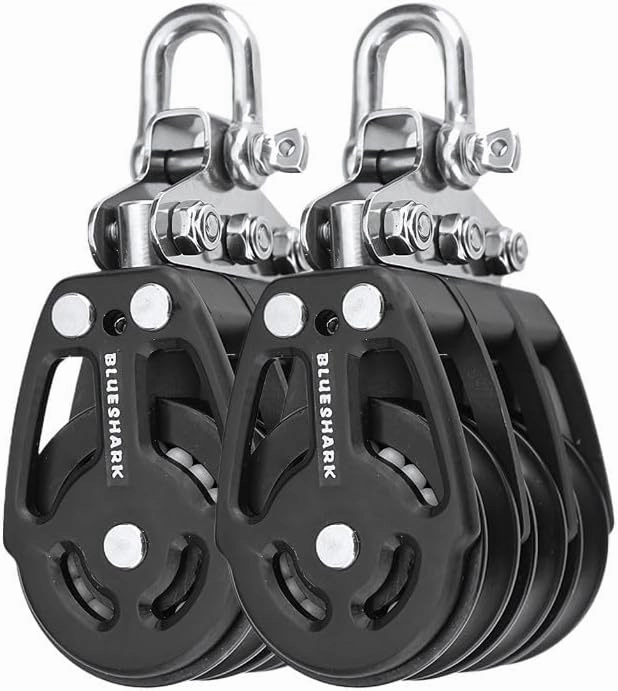

• Specifications: Model Number: 2256 Material: 6061T6 aluminum alloy Ball Bearings: Delrin Hardware: 316 stainless steel Sheave Diameter: 38mm Max Line Diameter: 10mm (3/8”) Safe Working Load (SWL): 2300 lbs (1060 kg) Breaking Load: 3700 lbs (1700 kg) Weight: 0.225kg Applications: Main/jib sheets, control lines Shackle Pin: 13.2mm with a 5mm diameter
• High-Strength Construction: Crafted from 6061T6 aluminum alloy with an anodized hard coating, providing superior durability and corrosion resistance.
• Smooth Operation: Delrin ball bearings minimize friction, ensuring smooth and efficient performance in various sailing conditions.
• Triple Sheave Design: Accommodates up to 10mm (3/8”) line, enhancing versatility and functionality for managing main/jib sheets and control lines.
• Durable Stainless Steel Hardware: 316 stainless steel components enhance strength, durability, and resistance to rust and corrosion, perfect for marine environments.
• Optimal Load Capacity: Supports a safe working load of 2300 lbs (1060 kg) and a breaking load of 3700 lbs (1700 kg), ideal for demanding sailing tasks.
• Lightweight Design: Weighs only 0.225kg, making it easy to handle and install without compromising on strength and durability.
